Product Description

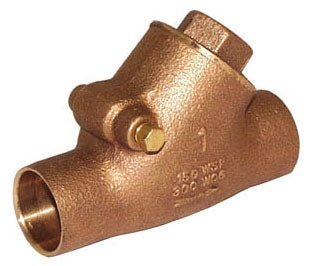

The Legend Valve 105-408NL is a Y-pattern check valve designed for reliable flow control. This valve has a nominal size of two inches and features female soldered connections. It is constructed from lead-free cast bronze and is suitable for potable water applications.
- Lead-free construction ensures safe use in water systems.
- Y-pattern design allows for high flow rates.
- Meets ANSI/ASME B16.18 standards.
Product Highlights
This check valve is well-suited for commercial and industrial settings, with a pressure rating of 150 PSI SWP and 300 PSI CWP.
Product Information
Standard Information
-
Manufacturer: Legend Valve
-
MPN: 105-408NL
Technical Specifications
-
Nominal Size: 2 Inch
-
End Connection: Female Soldered x Female Soldered
-
End to End Distance: 6.69 Inch
-
Body Material: JIS H5120 CAC902 Cast Bronze
-
Disc Material: JIS H5120 CAC902 Cast Bronze
-
Cap Material: JIS H5120 CAC902 Cast Bronze
-
Pressure Rating: 150 PSI SWP, 300 PSI CWP
-
Application: Potable Water, Commercial
-
Applicable Standard: ANSI/ASME B16.18, MSS SP-80, ISO 9002
-
Lead-Free: Yes
