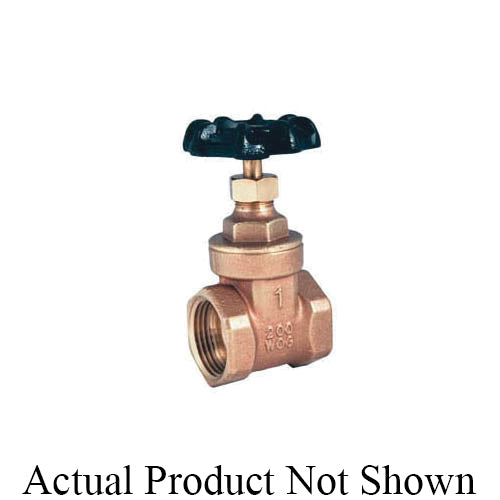

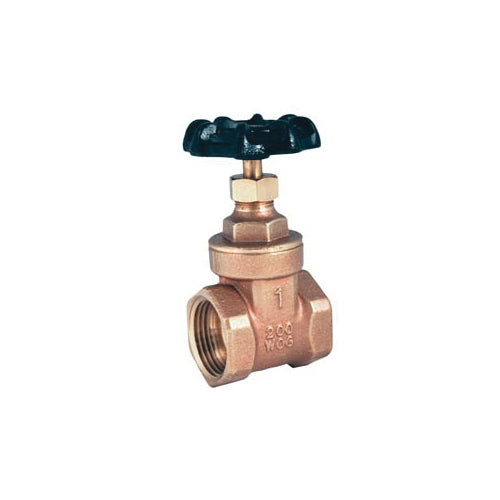

Legend 104-468 T-400 Compact Pattern Gate Valve, 2 in Nominal, FNPT End Style

Product Description

The LEGEND 104-468 is a T-400 series gate valve designed for fluid control in various applications. This valve features a compact pattern design suitable for residential and commercial use, with a two-inch nominal size and FNPT end style. Constructed from cast brass, it provides durability and reliability under pressure.

• Non-rising stem design for space efficiency.
• Rated for a maximum pressure of 200 psi CWP.
• Temperature rated at 200 degrees Fahrenheit.

Product Highlights

This gate valve is ideal for non-steam situations, offering secure sealing and straightforward operation through a handwheel actuator.

Product Information

Standard Information

• Manufacturer: LEGEND
• Part Number: 104-468

Technical Specifications

• Type: Compact Pattern
• End Style: FNPT
• Nominal Size: 2 in
• Pressure Rating: 200 psi CWP
• Temperature Rating: 200 deg F
• Actuator Type: Handwheel
• Body Material: Cast Brass
• Trim Material: Brass
• Softgoods Material: NBR Packing
• Hand Wheel Diameter: 2.96 in
• Inlet to Outlet Length: 2.4 in
• Top to Inlet Center: 4.93 in
• Standards: ISO 9002|NSF 61-8
