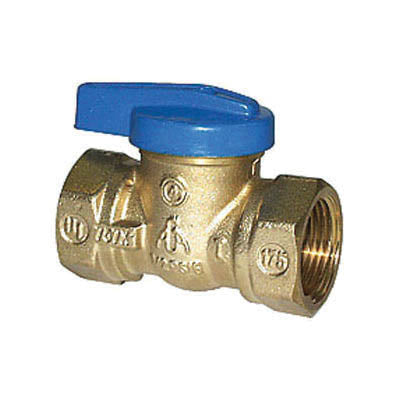

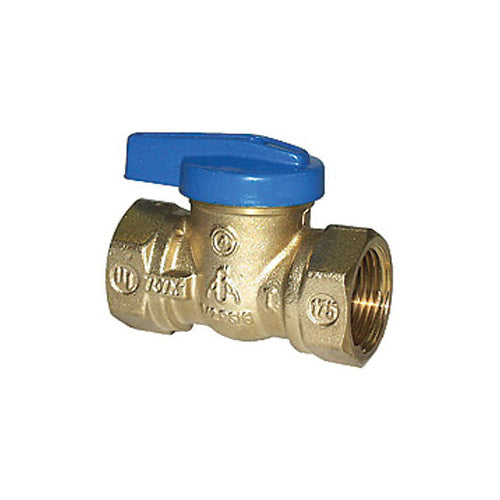

LEGEND 102-104 T-3000 1-Piece Ball Valve With Handle 3/4 in FNPT

Product Description

The LEGEND 102-104 T-3000 ball valve is designed for residential and commercial gas installations. It features a one-piece forged brass body, eliminating seam leaks. This valve has a nominal size of three-fourths of an inch and FNPT end style.

• Application: Suitable for residential and commercial gas installations
• Pressure rated up to 175 psi CWP
• Compact design with a polished chrome forged brass ball

Product Highlights

Easy to operate with a quarter-turn ball design and durable materials.

Product Information

Standard Information

• Manufacturer: LEGEND
• Part Number: 102-104

Technical Specifications

• Body Material: Forged Brass
• Dimensions: 2.14 inches in height
• Nominal Size: 3/4 inch
• Orifice Size: 0.6 inches
• Pressure Rating: 175 psi CWP
• Inlet to Outlet Length: 2.6 inches
• Standards: ANSI Z21.15/B1.20.1, CSA Certified
• Softgoods Material: NBR
