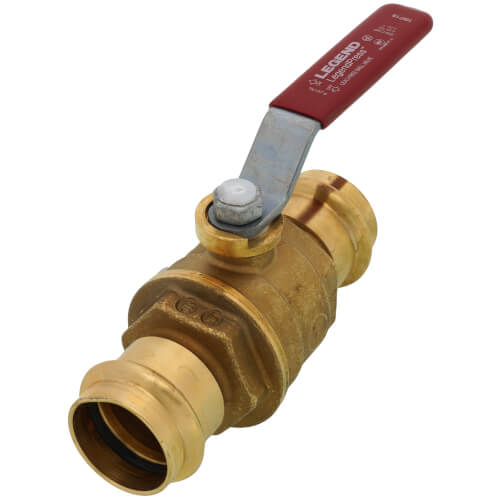

Legend 101-205NL 1 P-201NL Lead Free Forged Brass Ball Valve

Product Description

The Legend 101-205NL is a one-inch lead-free forged brass ball valve. It features a press end style for easy installations and a red handle for operation. This valve is rated for up to five hundred psi and can operate at temperatures up to two hundred fifty degrees Fahrenheit.

• Press-to-connect design simplifies installation on copper tubing
• Built from lead-free materials ensuring safe usage in water systems
• Full port design allows for maximum flow

Product Highlights

The Legend 101-205NL is ideal for various plumbing applications where lead-free components are required. Its robust construction and design ensure reliability and safety in water supply systems.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 101-205NL

Technical Specifications

• Material: Chrome Plated Forged Brass
• Body Material: Forged Brass
• End Style: Press
• Nominal Size: 1 inch
• Port Type: Full
• Pressure Rating: 500 psi
• Temperature Rating: 250 degrees Fahrenheit
• Inlet to Outlet Length: 4.40 inches
• Top to Inlet Center: 2.06 inches
• Trim Material: PTFE
• Standards/Approval: ANSI/NSF 61, ANSI/NSF 372, ANSI/ASME B16.51
