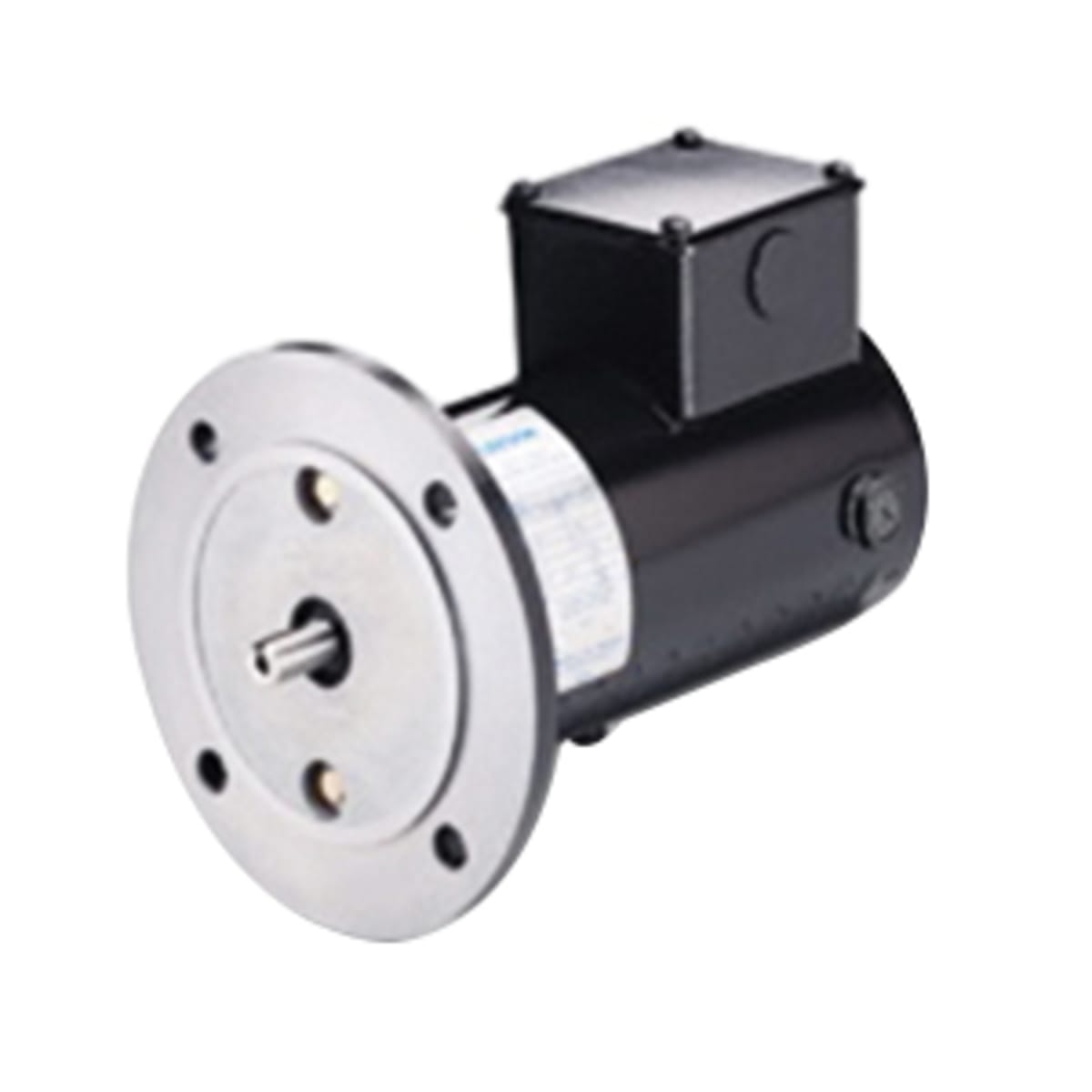

Leeson M1130153.00 G63-9 DC Motor 0.37 kW 3000 rpm

Product Description

The Leeson MPN M1130153.00 is a 2-pole continuous duty DC motor designed for commercial and industrial applications. This motor has a power rating of 0.37 kW, operates at 180 VDC, and features a speed of 3000 rpm. It is suitable for various settings where reliable performance is essential.

• Torque rating of 112 in-oz.
• Reversible rotation for flexible installation.
• Durable rolled steel construction.

Product Highlights

This motor is engineered for robust operation and efficiency, making it ideal for demanding environments. It is totally enclosed and fan cooled, ensuring longevity and consistent performance.

Product Information

Standard Information

• Brand: Leeson Electric
• MPN: M1130153.00

Technical Specifications

• Frame Size: 63D
• Speed: 3000 rpm
• Power Rating: 0.37 kW
• Voltage Rating: 180 VDC
• Current Rating: 2.4 A
• Dimensions: 5.51 in Dia x 9.5 in L x 5.75 in H
• Shaft Size: 0.44 in Dia x 0.9 in L
• Service Factor: 1
• Enclosure Type: Totally Enclosed Fan Cooled
• Insulation Class: Class F
• Country of Origin: US
• Temperature Rating: 40 deg C
• Bearing Type: Ball Bearing
• Torque Rating: 112 in-oz
