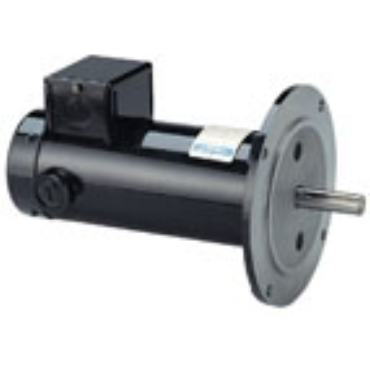

Leeson M1130054.00 DC Subfractional Explosion Proof Motors

Product Description

The Leeson M1130054.00 is a DC subfractional explosion-proof motor designed for durability and efficiency. This motor features a compact design making it suitable for limited space applications. It includes ball bearing construction for smooth operation and long life brushes to extend its lifespan. The motor allows for external access to brushes, facilitating easy maintenance. This model is rated for continuous duty with full wave unfiltered rectified SCR controls.

• Compact, space-saving design
• High starting torques
• Reversible rotation

Product Highlights

This motor is ideal for use in environments that require explosion-proof features and reliable performance.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 102939553

Technical Specifications

• Frame: 34
• Armature Voltage: 90 V
• Enclosure Designation: TENV - Totally Enclosed Non-Ventilated
• Inch/Metric: Inch
• Field Voltage: 90 V
• Model Number: M1130054.00
• Mounting: C-Face
• C Dimension: 8.93 in
• Base Speed: 1750 rpm
• Service Factor: 1
• Power: 0.170 hp
• Weight: 12.0 LB
• EAN or UPC: 691720091357
