Leeson M1120027.00 DC Subfractional Explosion Proof Motors 0.130 hp 1750 rpm 90 V Field Voltage

Product Description

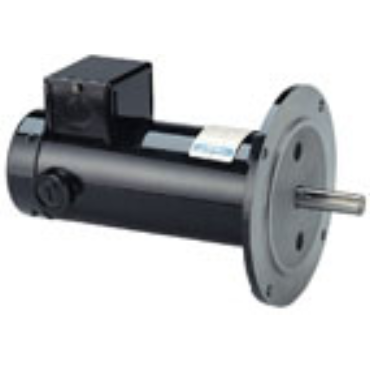

Leeson M1120027.00 is a DC Subfractional Explosion Proof Motor designed for various applications in demanding environments. This motor operates at 0.130 horsepower with a base speed of 1,750 rpm, making it suitable for tasks that require a reliable power source.

• Compact and space-saving design
• Ball bearing construction for durability
• External access to brushes for easy maintenance

Product Highlights

This motor provides continuous duty operation with full wave unfiltered rectified SCR (thyristor) controls, ensuring effective performance.

Product Information

Standard Information

• Brand: Leeson
• Model Number: M1120027.00
• Part Number: 103755996

Technical Specifications

• Mounting: Sq. Flange
• Field Voltage: 90 V
• Base Speed: 1750 rpm
• Enclosure Designation: TENV - Totally Enclosed Non-Ventilated
• Weight: 8.0 lb
• C Dimension: 8.45 inches
• Service Factor: 1.3
• EAN or UPC: 691720090763
