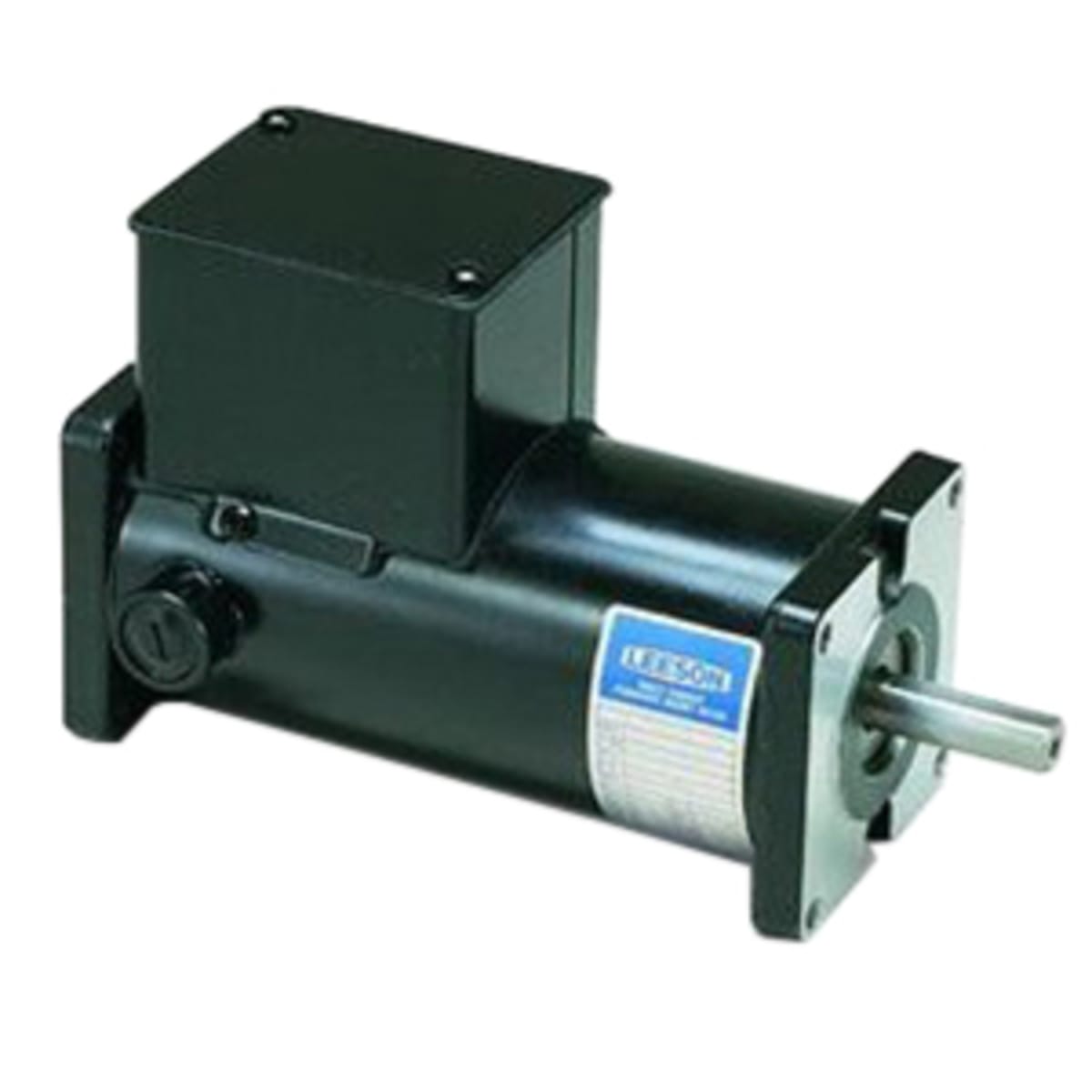

LEESON M1120013.00 DC Motor, 0.05 kW, 31 Frame, TENV

Product Description

The LEESON M1120013.00 is a 4-pole continuous duty precision sub-fractional DC motor. This motor operates at 90 VDC with a power rating of 0.05 kW. It provides a torque of 38.4 in-oz and has a speed of 1750 rpm. The motor is suitable for commercial and industrial applications.

• Efficient operation at 90 VDC.
• Reversible motor with a torque rating of 38.4 in-oz.
• Compact design fits easily into limited spaces.

Product Highlights

This DC motor features a totally enclosed non-vented design, offering protection in various environments. Its rolled steel construction ensures durability and reliability across applications.

Product Information

Standard Information

• Brand: LEESON
• Country of Origin: US

Technical Specifications

• MPN: M1120013.00
• Frame Size: 31
• Speed: 1750 rpm
• Power Rating: 0.05 kW
• Voltage Rating: 90 VDC
• Amperage Rating: 0.8 A
• Torque Rating: 38.4 in-oz
• Enclosure Type: Totally Enclosed Nonvented (TENV)
• Dimensions: 6.95 in L x 3.56 in W x 5.012 in H
• Shaft Size: 0.5 in Dia x 1.5 in L
• Service Factor: 1
• Insulation Class: Class F
