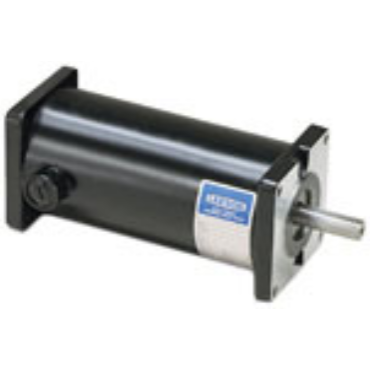

Leeson M1110015.00 DC Subfractional Explosion Proof Motors 0.070 hp

Product Description

Leeson M1110015.00 is a DC subfractional explosion-proof motor designed for various industrial applications. It operates at 0.070 horsepower and features a base speed of three thousand five hundred rpm. This motor is built with a 90 V field voltage and comes in a 25 frame size.

• Compact and space-saving design
• Ball bearing construction for durability
• External access to brushes for easy maintenance

Product Highlights

This motor is suitable for continuous duty operations and offers high starting torques and reversible rotation capabilities.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 104493493

Technical Specifications

• Base Speed: 3500 rpm
• Service Factor: 1
• Frame: 25
• Enclosure Designation: TENV - Totally Enclosed Non-Ventilated
• Armature Voltage: 90 V
• C Dimension: 4.94 inches
• Mounting: Sq. Flange
• Field Voltage: 90 V
• Model No.: M1110015.00
• Weight: 5.0 LB
• EAN or UPC: 691720090534
