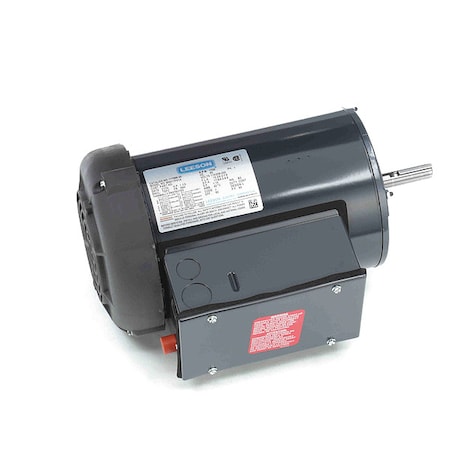

Leeson M009089.00 Farm Duty Motor 1.5 HP 115/208-230V AC 1,725 RPM

Product Description

The Leeson M009089.00 Farm Duty Motor is a capacitor-start/run motor designed for farm applications. This motor provides 1.5 HP and operates on 115/208-230V AC with a nameplate speed of 1,725 RPM.

• 1.5 HP single-phase motor
• Operates at 115/208-230V AC
• 1,725 RPM rated speed

Product Highlights

This motor is ideal for applications requiring a reliable, continuous duty cycle. It features a rigid base and a totally enclosed fan-cooled design for enhanced durability. The motor is thermally protected with a manual reset.

Product Information

Standard Information

• Brand: Leeson
• MPN: M009089.00
• Type: Farm Duty Motor

Technical Specifications

• HP: 1.5
• Hz: 60
• Frame: 56
• Phase: Single
• Finish: Enamel
• Weight: 41 lb
• Voltage: 115/208-230V AC
• RPM Range: 1,701-1,800
• Standards: CSA (LR2025), UL (E49747)
• Duty Cycle: Continuous
• Insulation Class: B
• Shaft Diameter: 5/8 in
• Motor Design: Capacitor-Start/Run
• Shaft Length: 1 7/8 in
• Nameplate RPM: 1,725
• No. of Speeds: 1
• Usable @ 200V: No
• Usable @ 208V: Yes
• Full Load Amps: 18.0/9.0
• Motor Bearings: Ball
• Overall Length: 12 7/8 in
• Length Less Shaft: 11 in
• Motor Application: Farm Duty
• Capacitor Required: Yes
• Max. Ambient Temp.: 105 Degrees F
• Motor Shaft Design: Keyed
• Nominal Efficiency: 78.9%
• Motor Mounting Type: Rigid Base
• Motor Frame Material: Rolled Steel
• Motor Service Factor: 1
• Motor Shaft Rotation: CCW
• Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
• Motor Enclosure Design: Totally Enclosed Fan-Cooled
• Motor Mounting Position: Horizontal
• Motor Thermal Protection: Manual
• Manufacturers Warranty Length: 1 yr
• Country of Origin: China
