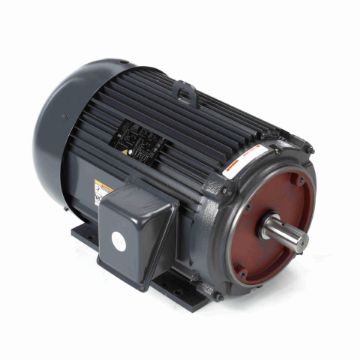

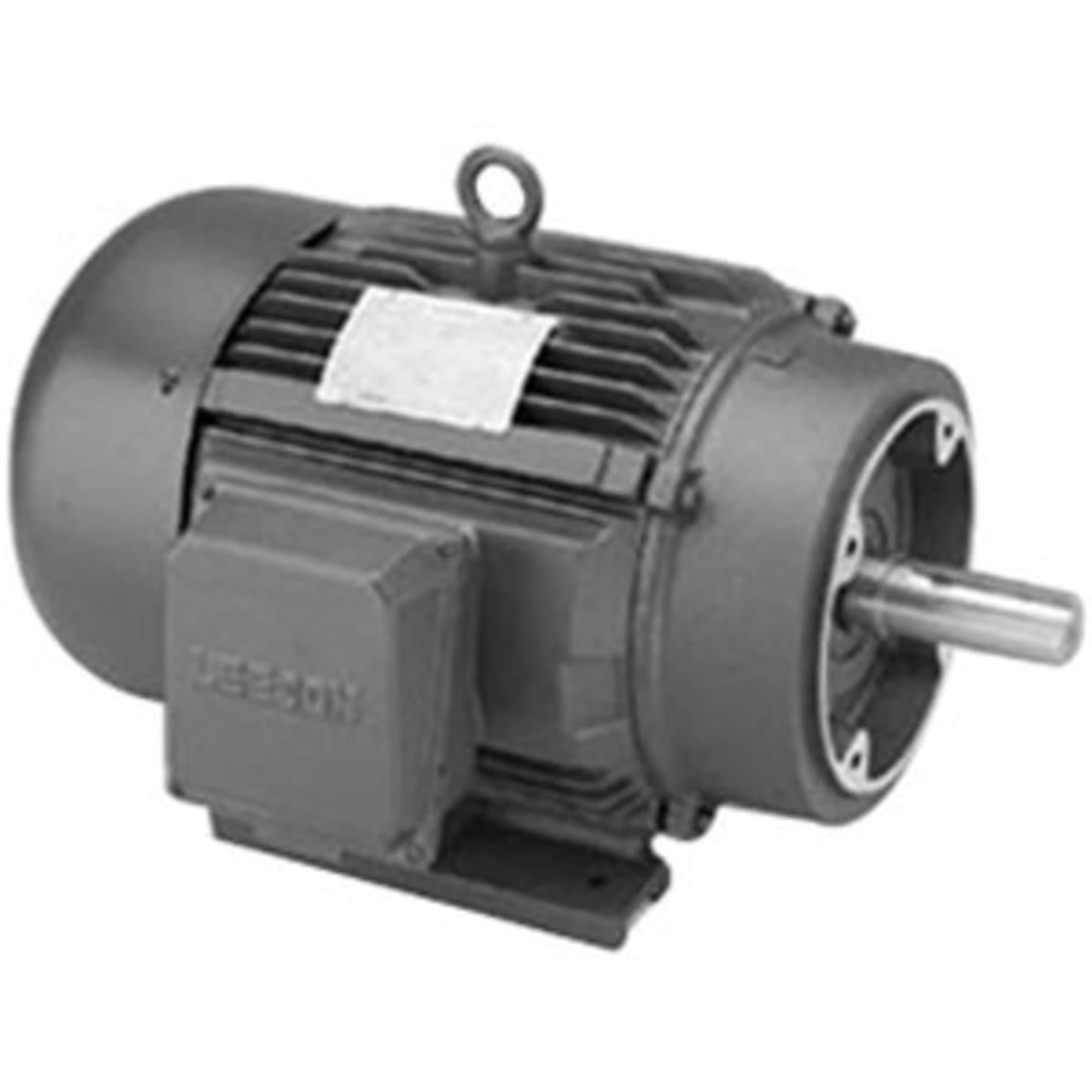

Leeson LM32842 General Purpose Motor 30 HP 286TSC Frame TEFC

Product Description

The Leeson Electric LM32842 is a continuous-duty AC motor designed for commercial and industrial applications. This motor provides 30 horsepower and operates at a speed of one thousand seven hundred seventy RPM. It features a totally enclosed fan-cooled enclosure and is suitable for various general-purpose AC motor applications.

• 30 HP with a voltage rating of 230/460 VAC
• Reversible rotation with a service factor of 1.25
• Constructed with an aluminum frame and a C-Face/Rigid base mount

Product Highlights

This motor is ideal for use in pumps, compressors, and fans. It provides reliable performance in challenging environments where exposure to water or dust is a concern.

Product Information

Standard Information

• Brand: Leeson Electric
• Type: Continuous-Duty

Technical Specifications

• MPN: LM32842
• Horsepower: 30 hp
• Frame Size: 286TSC
• Voltage Rating: 230/460 VAC
• Speed: 1770 rpm
• Amperage Rating: 75/37.5 A
• Enclosure Type: Totally Enclosed Fan Cooled
• Dimensions: 26.63 inches L x 18.77 inches W x 16.1 inches H
• Shaft Size: 1.63 inches Dia x 3.25 inches L
• Torque Rating: 88.5 ft-lb
• Insulation Class: Class F
• Temperature Rating: 40 degrees C
• Variable Torque Speed Range: 10:1
• Application Type: General Purpose AC Motors
