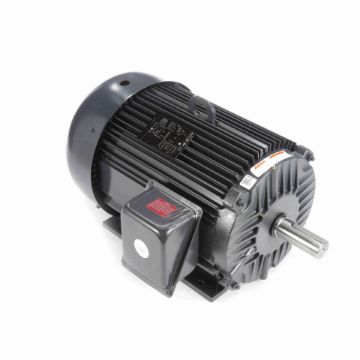

LEESON LM32807 Ultimate e LM32807 7.5 hp General Purpose AC Motor

Product Description

LEESON Ultimate e LM32807 is a powerful 7.5 hp continuous duty AC motor. It operates at 230/460 VAC with a speed of 872 rpm. This AC motor is designed with a totally enclosed fan-cooled (TEFC) enclosure for reliable performance. Ideal for commercial and industrial applications, it provides effective operation in various settings.

• High-efficiency ratings with Class F insulation
• Reversible rotation for flexible installation
• Rigid base mounting offers stability

Product Highlights

This motor features a rugged aluminum construction and is certified to CE and CSA standards. It operates under heavy loads while maintaining durability.

Product Information

Standard Information

• Brand: LEESON
• MPN: LM32807

Technical Specifications

• Horsepower: 7.5 hp
• Voltage Rating: 230/460 VAC
• Phase: 3
• Speed: 872 rpm
• Frame Size: 256T
• Dimensions: 25.15 in L x 16.98 in W x 14.39 in H
• Torque Rating: 45.2 ft-lb
• Service Factor: 1.15
• Enclosure Type: Totally Enclosed Fan Cooled
• Temperature Rating: 40 deg C
• Weight: 195 lb
