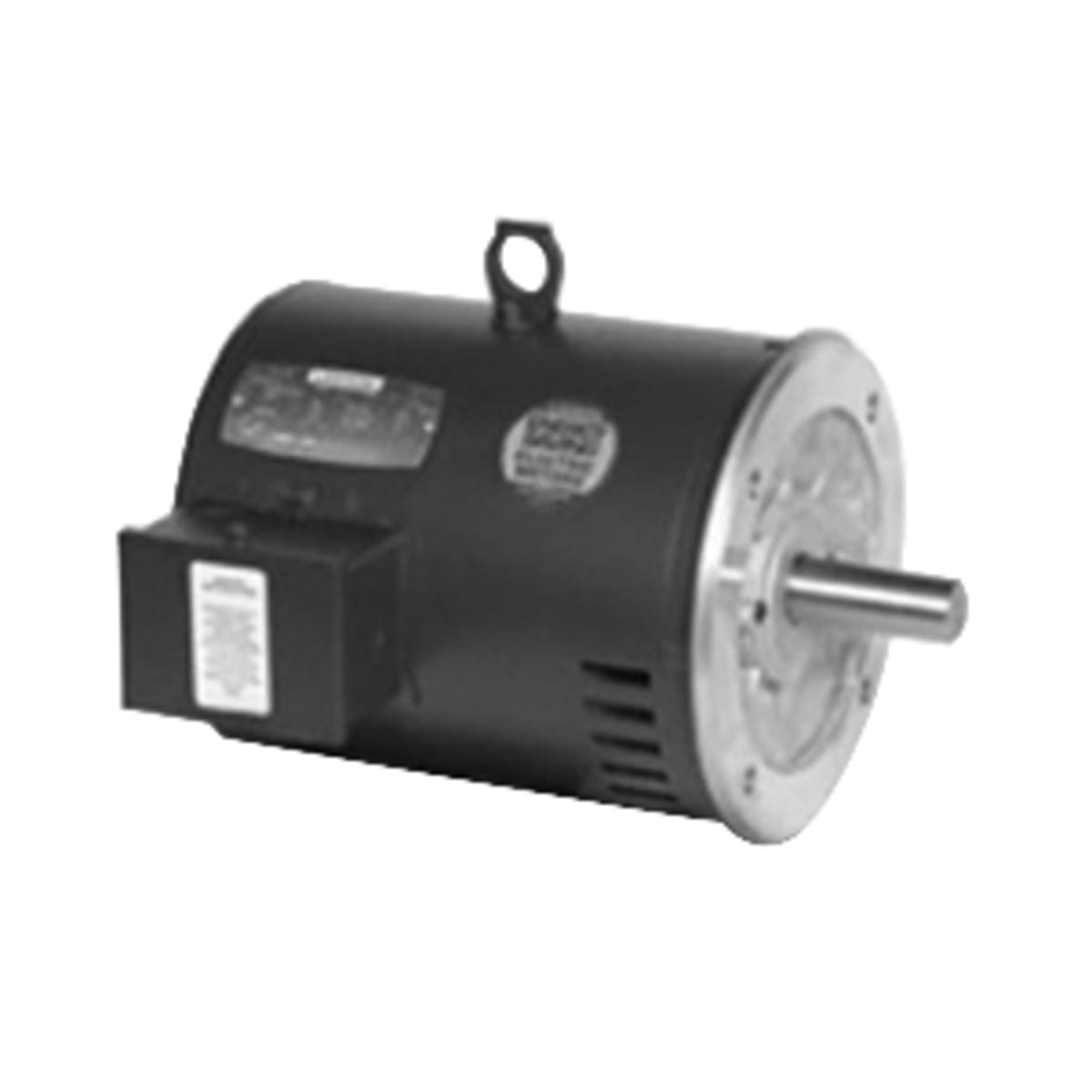

LEESON LM32656 Ultimate e AC Motor 75 hp 3 Phase

SKU: LM32656
Availability: Out Of Stock
LTL Delivery

This product weighs 500 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

LEESON LM32656 is a continuous-duty AC motor. It features a three-phase design and can operate at 75 horsepower. This motor is suitable for various applications including pumps, compressors, fans, and blowers.

  • Continuous-duty operation
  • Reversible rotation
  • Effective for industrial applications

Product Highlights

This motor provides reliable performance in demanding conditions.

Product Information

Standard Information

  • Brand: LEESON
  • Part Number: LM32656
Technical Specifications
Frame Size
365TSC
Phase
3
Speed
1782 rpm
Material
Rolled Steel
Rotation
Reversible
Dimensions
27.27 in L x 25.34 in W x 20.78 in H
Horsepower
75 hp
Shaft Size
1.88 in Dia x 3.75 in L
Bearing Type
Ball
Mounting Type
C-Face/Rigid Base
Torque Rating
221 ft-lb
Enclosure Type
DP
Service Factor
1.25
Voltage Rating
230/460 VAC
Amperage Rating
176/88 A
Frequency Rating
60 Hz
Insulation Class
Class F
Temperature Rating
40 deg C
Variable Torque Speed Range
10:1
