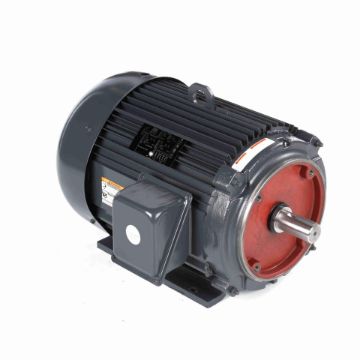

LEESON LM32654 LEE 25 hp Totally Enclosed Fan Cooled Motor

Product Description

LEESON Ultimate e LM32654 is a continuous-duty AC motor. This motor is designed for commercial and industrial applications. It operates at 25 horsepower and is rated for voltages of two hundred thirty or four hundred sixty VAC. The motor features a totally enclosed fan cooled design, ensuring optimal performance even in demanding environments.

• Totally enclosed fan cooled enclosure
• Reversible rotation with a speed of one thousand seven hundred seventy-five rpm
• Durable construction with aluminum material and a service factor of 1.25

Product Highlights

The LEESON LM32654 is designed for general purpose applications, providing efficiency and reliability. The robust features make it suitable for various motor uses across industries.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer: Leeson Electric

Technical Specifications

• Frame: 284TSC
• Phase: 3
• Speed: 1775 rpm
• Horsepower: 25 hp
• Shaft Size: 1.63 in Dia x 3.25 in L
• Torque Rating: 74 ft-lb
• Amperage Rating: 65/32.5 A
• Voltage Rating: 230/460 VAC
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Service Factor: 1.25
• Temperature Rating: 40 deg C
• Enclosure Type: Totally Enclosed Fan Cooled
• Application Type: General Purpose AC Motors
• Variable Torque Speed Range: 10:1
• Country of Origin: US
