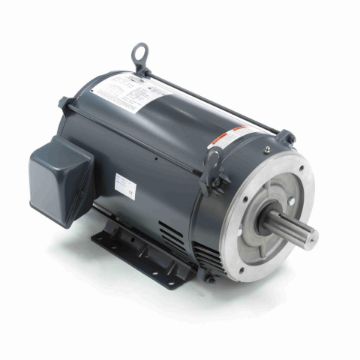

LEESON LM32649 LEE 10 hp Continuous Duty AC Motor

Product Description

The LEESON LM32649 is a continuous-duty AC motor designed for various applications such as pumps, compressors, fans, and blowers. It operates at 10 horsepower with 230/460 VAC voltage and a speed of 1760 rpm. This motor features a dual-purpose enclosure and a C-Face/rigid base mount for easy installation.

• Premium efficiency ratings for energy saving
• Reversible rotation for flexible use
• Durable rolled steel construction

Product Highlights

This motor demonstrates reliability and efficiency, making it ideal for industrial and commercial use.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer: Leeson Electric

Technical Specifications

• Frame: 215TC
• Phase: 3
• Speed: 1760 rpm
• Material: Rolled Steel
• Rotation: Reversible
• Dimensions: 21.09 in L x 12.44 in W x 11 in H
• Horsepower: 10 hp
• Shaft Size: 1.38 in Dia x 3.38 in L
• Bearing Type: Ball
• Mounting Type: C-Face/Rigid Base
• Torque Rating: 29.8 ft-lb
• Enclosure Type: DP
• Service Factor: 1.25
• Voltage Rating: 230/460 VAC
• Amperage Rating: 25/12.5 A
• Application Type: Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Country of Origin: MX
• Temperature Rating: 40 deg C
• Variable Torque Speed Range: 10:1
