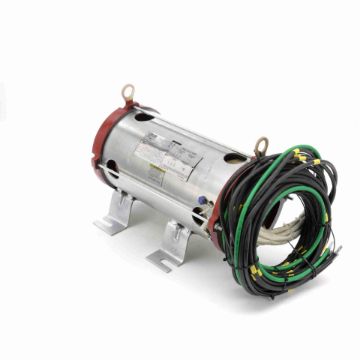

LEESON LM29671 LM29671 LEE 50 hp Intermittent Duty AC Motor

Product Description

The LEESON LM29671 is an intermittent duty AC motor designed for various industrial applications. This motor operates efficiently at fifty horsepower and is built to handle voltage ratings of two hundred volts with a frequency of sixty hertz. The motor features an open enclosure and a rigid base mount for stability.

• Powerful motor with a speed of three thousand five hundred rpm
• Compatible with hydraulic pump motors and elevator systems
• Reversible rotation for versatile applications

Product Highlights

This AC motor is ideal for hydraulic pump passenger elevators, service and freight low-rise elevators, and various commercial settings.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer: Leeson Electric

Technical Specifications

• Frame: 160Z
• Phase: 3 ph
• Horsepower: 50 hp
• Speed: 3500 rpm
• Dimensions: 14.53 in L x 11.81 in W x 13.35 in H
• Shaft Size: 1.25 in Dia x 2.92 in L
• Torque Rating: 75 ft-lb
• Voltage Rating: 200 VAC
• Amperage Rating: 140 A
• Frequency Rating: 60 Hz
• Material: Rolled Steel
• Mounting Type: Rigid Base
• Enclosure Type: Open
• Temperature Rating: 70 deg C
• Insulation Class: Class F
• Service Factor: 1
• Variable Torque Speed Range: 10:1
