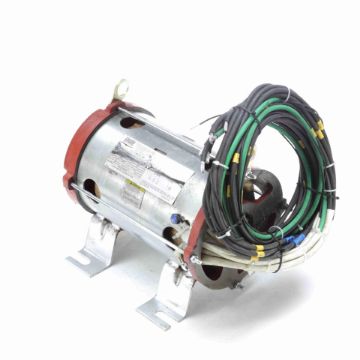

LEESON LM29665 Intermittent Duty AC Motor 30 hp 200 VAC

Product Description

LEESON LM29665 is a reliable intermittent duty AC motor suitable for various applications, including hydraulic pump and elevator systems. This motor operates at thirty horsepower with a voltage rating of two hundred volts AC and a frequency of sixty hertz. The open enclosure and rigid base mount provide versatility for different setups. This motor is designed to perform at a speed of three thousand five hundred revolutions per minute.

• Application types: elevator motors, hydraulic pump motors, submersible pump motors.
• Durable rolled steel construction and Class F insulation.
• Features reversible rotation and a service factor of one.

Product Highlights

This motor is ideal for commercial and industrial applications, designed to withstand various operating conditions.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer: Leeson Electric

Technical Specifications

• Frame: 160Z
• Phase: 3 ph
• Speed: 3500 rpm
• Horsepower: 30 hp
• Voltage Rating: 200 VAC
• Amperage Rating: 92 A
• Temperature Rating: 70 deg C
• Shaft Size: 1.25 in Dia x 2.92 in L
• Torque Rating: 45 ft-lb
• Enclosure Type: Open
• Insulation Class: Class F
• Material: Rolled Steel
• Mounting Type: Rigid Base
• Rotation: Reversible
• Variable Torque Speed Range: 10:1
