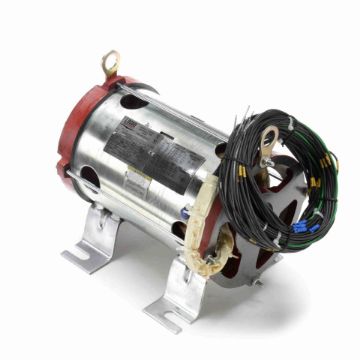

LEESON LM29660 Intermittent Duty AC Motor 20 hp 230/460 VAC 3 Phase

Product Description

The LEESON LM29660 is an intermittent duty AC motor designed for various heavy-duty applications. This motor operates at twenty horsepower and features a voltage rating of two hundred thirty to four hundred sixty VAC. It is suitable for three-phase systems with a speed output of three thousand four hundred ninety-five rpm.

• Applications include elevator motors, hydraulic pump motors, and submersible pump motors.
• Key features include a rigid base mount and a reversible rotation direction.
• It has a robust construction using rolled steel and offers a service factor of 1.

Product Highlights

This motor is suitable for both commercial and industrial applications, ensuring reliability in demanding settings.

Product Information

Standard Information

• Brand: LEESON
• Type: Intermittent Duty

Technical Specifications

• Frame: 160Z
• Phase: 3 ph
• Horsepower: 20 hp
• Speed: 3495 rpm
• Voltage Rating: 230/460 VAC
• Amperage Rating: 56/28 A
• Dimensions: 14.53 in L x 11.81 in W x 13.35 in H
• Shaft Size: 1.25 in Dia x 2.92 in L
• Enclosure Type: Open
• Insulation Class: Class F
• Temperature Rating: 70 deg C
• Torque Rating: 30 ft-lb
• Bearing Type: Ball
• Mounting Type: Rigid Base
• Application Type: Elevator Motors, Hydraulic Pump Motors, Submersible Pump Motors
• Frequency Rating: 60 Hz
• Variable Torque Speed Range: 10:1
