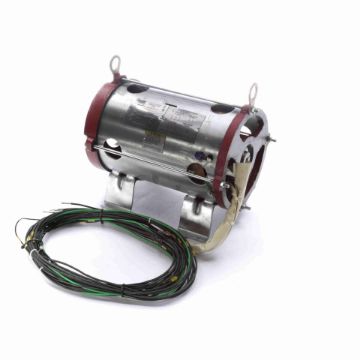

LEESON LM29658 LEE Intermittent Duty AC Motor 15 hp 575 VAC

Product Description

The LEESON LM29658 is an intermittent duty AC motor used in various applications. This motor operates at fifteen horsepower with a voltage rating of five hundred seventy-five VAC. It features a three-phase design, making it suitable for industrial environments. The open enclosure allows for effective cooling during operation, while the rigid base mount provides stability.

• 15 horsepower and 575 VAC rating
• Rigid base mounting for stability
• Open enclosure for cooling efficiency

Product Highlights

This motor is ideal for elevator motors, hydraulic pump motors, and submersible pump motors. Its specifications make it fit for commercial and industrial use, ensuring reliable performance.

Product Information

Standard Information

• Brand: LEESON
• Type: Intermittent Duty

Technical Specifications

• Frame: 160Z
• Phase: 3 ph
• Speed: 3500 rpm
• Material: Rolled Steel
• Rotation: Reversible
• Dimensions: 14.53 in L x 11.81 in W x 13.35 in H
• Horsepower: 15 hp
• Shaft Size: 1.25 in Dia x 2.92 in L
• Bearing Type: Ball
• Mounting Type: Rigid Base
• Torque Rating: 22.5 ft-lb
• Enclosure Type: Open
• Service Factor: 1
• Voltage Rating: 575 VAC
• Amperage Rating: 18.4 A
• Application Type: Elevator Motors, Hydraulic Pump Motors, Submersible Pump Motors
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Country of Origin: CN
• Temperature Rating: 70 deg C
• Variable Torque Speed Range: 10:1
