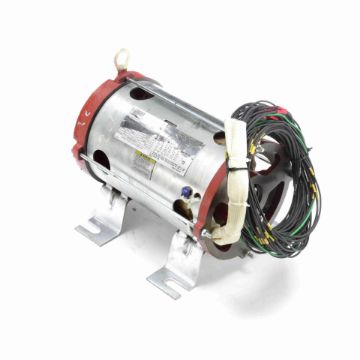

Leeson LM29657 Intermittent Duty AC Motor 15 hp 230/460 VAC

Product Description

The Leeson LM29657 is an Intermittent Duty AC Motor designed for various applications including hydraulic pump motors and elevator systems. This motor features a power rating of fifteen horsepower and operates at 230/460 VAC under a frequency of sixty hertz. It utilizes a rigid base mount and is constructed with rolled steel for durability.

• Horsepower: 15 hp
• Speed: 3500 rpm
• Reversible operation

Product Highlights

This motor is suitable for both commercial and industrial use, making it versatile for many settings. It features a robust design and is rated for a service factor of one, ensuring reliable performance in demanding applications.

Product Information

Standard Information

• Brand: Leeson Electric
• Type: Intermittent Duty

Technical Specifications

• Frame: 160Z
• Phase: 3 ph
• Dimensions: 14.53 in L x 11.81 in W x 13.35 in H
• Torque Rating: 22.5 ft-lb
• Amperage Rating: 46/23 A
• Voltage Rating: 230/460 VAC
• Insulation Class: Class F
• Service Factor: 1
• Temperature Rating: 70 deg C
• Shaft Size: 1.25 in Dia x 2.92 in L
• Bearing Type: Ball
• Enclosure Type: DP
• Application Type: Elevator Motors, Hydraulic Pump Motors, Submersible Pump Motors
