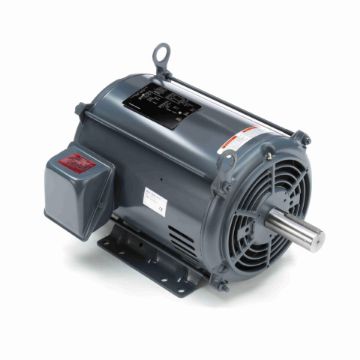

LEESON LM28868 AC Motor 10 hp 230/460 VAC 3 Phase

Product Description

The LEESON LM28868 AC Motor is a powerful and efficient motor designed for various applications. This model operates at 10 horsepower with a voltage rating of 230/460 VAC. It features a dual voltage setup and runs on three-phase power. The speed of the motor is rated at 1750 rpm.

• Designed for hydraulic pump and elevator applications
• Reversible with rigid base mounting
• Ball bearing for enhanced performance

Product Highlights

This motor is ideal for low rise elevators and industrial applications where reliability is crucial.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer: Leeson Electric

Technical Specifications

• Frame Size: 215T
• Phase: 3 ph
• Speed: 1750 rpm
• Horsepower: 10 hp
• Shaft Size: 1.38 in diameter x 3.38 in length
• Mounting Type: Rigid Base
• Amperage Rating: 25/12.5 A
• Insulation Class: Class F
• Torque Rating: 30 ft-lb
• Voltage Rating: 230/460 VAC
