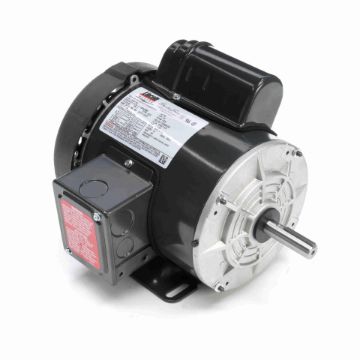

LEESON LM24789 Continuous-Duty AC Motor 0.33 hp 56 Frame

Product Description

The LEESON LM24789 is a continuous-duty AC motor designed for various applications. This motor operates at 0.33 horsepower with a voltage rating of 115/208 to 230 VAC. It features a totally enclosed fan cooled enclosure. The motor is reliable for farm duty motors and general purposes such as fans and blowers.

• Power: 0.33 horsepower
• Speed: 1725 rpm
• Mounting Type: Rigid Base

Product Highlights

This motor offers a capacitor start for efficient performance. It includes a ball bearing system and operates under a frequency rating of 60 Hz. Suitable for commercial and industrial applications.

Product Information

Standard Information

• Brand: LEESON
• Type: Continuous-Duty

Technical Specifications

• Frame: 56
• Phase: 1
• Speed: 1725 rpm
• Horsepower: 0.33 hp
• Shaft Size: 0.63 in Dia x 1.88 in L
• Torque Rating: 16 ft-lb
• Enclosure Type: Totally Enclosed Fan Cooled
• Voltage Rating: 115/208 to 230 VAC
• Amperage Rating: 6.6/3.1 to 3.3 A
• Service Factor: 1.15
• Insulation Class: Class B
• Country of Origin: MX
• Temperature Rating: 40 deg C
• Variable Torque Speed Range: 10:1
