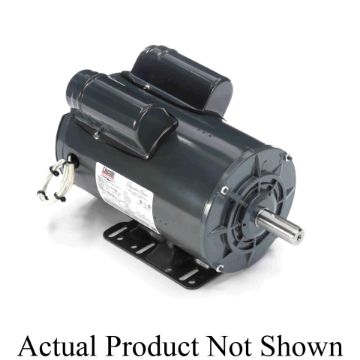

LEESON LM24736 Continuous-Duty AC Motor 0.5 hp 115/208 to 230 VAC

Product Description

The LEESON LM24736 is a continuous-duty AC motor designed for various applications including pumps, conveyors, and commercial industrial tasks. This motor operates at 0.5 horsepower and is suitable for both residential and commercial settings with voltage ratings of 115/208 to 230 VAC. The motor features a totally enclosed fan-cooled enclosure for reliability in demanding environments.

• Capacitor Start Motor
• Ball Bearing Construction
• Dimensions: 11.82 inches by 8.93 inches by 7.97 inches

Product Highlights

Versatile motor ideal for compressors, fans, and general-purpose applications. It includes a selective counterclockwise rotation feature and is rated for high efficiency.

Product Information

Standard Information

• Brand: LEESON
• Type: Continuous-Duty

Technical Specifications

• MPN: LM24736
• Horsepower: 0.5 hp
• Voltage Rating: 115/208 to 230 VAC
• Amperage Rating: 8.4/4 to 4.2 A
• Frequency Rating: 60 Hz
• Speed: 3450 rpm
• Enclosure Type: Totally Enclosed Fan Cooled
• Shaft Size: 0.63 inches diameter x 1.88 inches length
• Torque Rating: 12 ft-lb
• Service Factor: 1.15
• Frame Size: 56C
• Insulation Class: Class B
• Maximum Temperature Rating: 40 deg C
• Material: Rolled Steel
