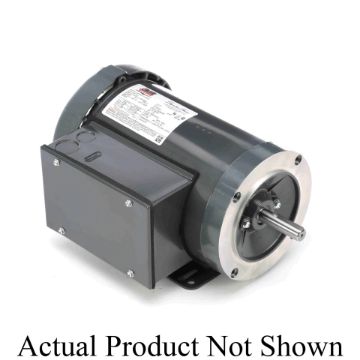

LEESON LM24539 Continuous-Duty AC Motor 1.5 hp C-Face/Rigid Base

Product Description

LEESON LM24539 is a continuous-duty AC motor designed for various applications, including pumps and conveyors. This motor operates at 1.5 horsepower and is compatible with voltages ranging from 115 to 230 VAC. It features a totally enclosed fan-cooled design, ensuring reliable operation in demanding environments.

• Capacitor start motor for efficient operation
• Speed of 3450 RPM
• Robust construction with rolled steel housing

Product Highlights

This motor is suitable for compressor motors, fan and blower motors, and general purpose AC motor tasks.

Product Information

Standard Information

• Brand: LEESON
• Type: Continuous-Duty

Technical Specifications

• MPN: LM24539
• Horsepower: 1.5 hp
• Voltage Rating: 115/208 to 230 VAC
• Amperage Rating: 14.2/7.7 to 7.1 A
• Speed: 3450 rpm
• Frame: 56Z
• Dimensions: 12.82 in L x 9.17 in W x 7.34 in H
• Shaft Size: 0.63 in Dia x 1.88 in L
• Enclosure Type: Totally Enclosed Fan Cooled
• Mounting Type: C-Face/Rigid Base
• Torque Rating: 2.24 ft-lb
• Service Factor: 1.15
• Insulation Class: Class B
• Temperature Rating: 40 deg C
• Country of Origin: MX
