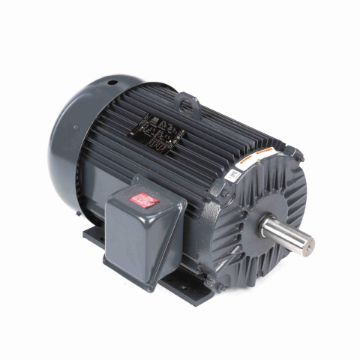

LEESON LM15673 Ultimate e LM15673 20 hp 230/460 VAC

Product Description

LEESON LM15673 is a continuous-duty AC motor suitable for general applications. This motor is rated at 20 horsepower and operates at 230/460 volts. It is designed for three-phase operation with a speed of three thousand five hundred thirty-seven revolutions per minute.

• Totally enclosed fan-cooled enclosure
• Reversible rotation and rigid base mounting
• CE/CSA Certified and UL Listed

Product Highlights

Ideal for commercial and industrial applications, this motor features a robust aluminum frame and ball bearing design for durability.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer: Leeson Electric

Technical Specifications

• Horsepower: 20 hp
• Voltage Rating: 230/460 VAC
• Amperage Rating: 47/23.4 A
• Speed: 3537 rpm
• Frame: 256T
• Enclosure Type: Totally Enclosed Fan Cooled
• Service Factor: 1.25
• Torque Rating: 29.7 ft-lb
• Shaft Size: 1.63 in Dia x 4 in L
• Dimensions: 25.15 in L x 16.98 in W x 14.39 in H
• Insulation Class: Class F
• Temperature Rating: 40 deg C
• Variable Torque Speed Range: 10:1
• Application Type: General Purpose AC Motors
• Frequency Rating: 60 Hz
