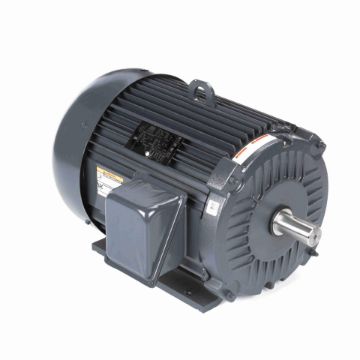

leeson lm13960 ultimate e ac motor 25 hp 230/460 vac

Product Description

LEESON Ultimate e LM13960 is a continuous-duty AC motor built for general applications. With a horsepower of twenty-five and a dual voltage rating of two hundred thirty or four hundred sixty volts, this motor operates at a frequency of sixty hertz and features a three-phase design. It offers a speed of three thousand five hundred thirty-five RPM and comes with a rigid base mount for easy installation.

• Continuous-duty design for reliability
• Totally enclosed fan cooled enclosure
• Reversible rotation for flexible use

Product Highlights

This motor is ideal for commercial and industrial applications. It meets premium efficiency standards and is suitable for various setups.

Product Information

Standard Information

• Brand: LEESON
• Type: Continuous-Duty

Technical Specifications

• Frame: 284TS
• Phase: 3
• Speed: 3535 RPM
• Material: Aluminum
• Rotation: Reversible
• Horsepower: 25 hp
• Shaft Size: 1.63 in Dia x 3.25 in L
• Torque Rating: 37.2 ft-lb
• Enclosure Type: Totally Enclosed Fan Cooled
• Service Factor: 1.25
• Voltage Rating: 230/460 VAC
• Amperage Rating: 56/28 A
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Temperature Rating: 40 deg C
• Variable Torque Speed Range: 10:1
• Country of Origin: US
