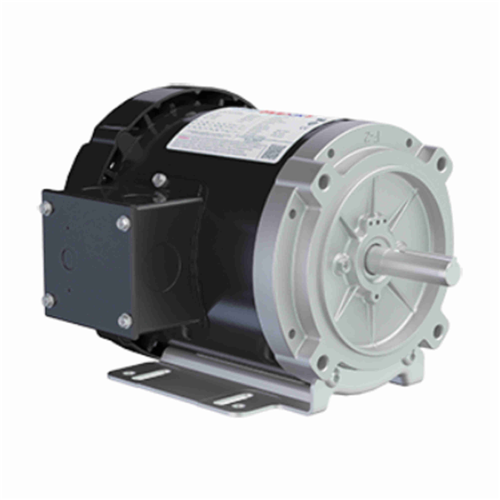

Leeson FX13BK004 General Purpose Motor 0.33 HP 56C Frame

Product Description

The LEESON FX13BK004 is a general purpose motor with a power rating of 0.33 HP. This motor is designed with a 56C frame and operates at 1800 RPM. The FLEX-IN-1 motor can be configured into three mounting styles: F1, F2 & F3. It is inverter duty capable and features combination mounting holes in the base.

• One FLEX-IN-1™ motor replaces 18 general purpose motors
• Easily configured into three mounting styles: F1, F2 & F3
• Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP

Product Highlights

The Leeson FX13BK004 is suitable for various industrial environments, providing consistent performance even under challenging conditions.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: FX13BK004
• Country of Origin: Mexico

Technical Specifications

• Motor Phase: 3 ph
• Motor Horsepower: 1/3 hp
• Synchronous Rpm: 1800 rpm / 1500 rpm
• Motor Supply Voltage: 190/380 V, 230/460 V
• Frame Size: 56C
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Frequency Rating: 60 Hz
• Assembly Box Mounting: F1, F2/F3 Capable
• Duty Condition Type: Continuous
• Mounting Type: Bolt-on Base
• Thermal Protection: None
• Electrical Type: Squirrel Cage Inverter Rated
• KVA Code: N
• Motor Orientation: Horizontal Or Up Or Down
• Number Of Speeds: 1
• Starting Method: Line Or Inverter
• Shaft Diameter: 0.6250 in
• Shaft Type: NEMA 56
• Drive End Bearing: Ball
• Ambient Temperature Range: 40 °C
• Opposite Drive End Bearing Type: Ball
• NEMA Design Class: B
• Service Factor: 1.15
• Frame Material: Rolled Steel
• Insulation Class: F
• IP Rating: 43
• Drive End Bearing Size: 6203
• Opposite Drive End Bearing Size: 6203
• Overload Protector: No Protection
• Voltage: 230/460 V
• Product Type: General Purpose Motors
• Brand: LEESON
• Manufacturer Part #: FX13BK004
• Series: FLEX-IN-1 (General Purpose)
• Current Rating: 1.8-1.6/.8&1.6/.8 A
• Enclosure: Totally Enclosed Fan Cooled
• HP: 0.33
• RPM: 1800 RPM
• Phase: 3
• Number of Poles: 4
• Alternate Mfr Part Number: 056T17F15949
• Mounting: Bolt-on Base
• Speed [Max]: 1725
• Efficiency: 68
• Power factor: 61.9
• Resistance main: 44.4
• Rotation: Reversible
• UL: Recognized
• CE: Y
• CSA: Y
• DE Bearing Size: 6203
• Duty: Continuous
• KW: 0.25
• IP code: 43
