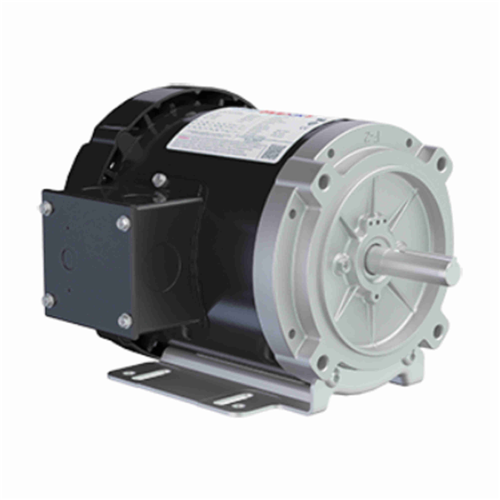

Leeson FX12BK006 Flex-In-1 Motor 0.5HP 1200RPM

Product Description

The LEESON FX12BK006 FLEX-IN-1 motor is a totally enclosed fan cooled, rolled steel, premium efficient AC electric motor suitable for general purpose applications. This motor operates at 230/460V, 3-Phase, and 60/50Hz. It is rated for 0.5HP at 1200RPM and has a 56C frame with feet and F1 mount.

• Rolled Steel Frame
• Double-Sealed Bearings
• IP43 Rated Ingress Protection

Product Highlights

This motor is inverter duty capable with a 10:1 CT for TEFC and features a rotatable conduit box and fan guard, along with a removable base.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: FX12BK006
• Country of Origin: Mexico

Technical Specifications

• Brand: Leeson
• Manufacturer Part #: FX12BK006
• Voltage: 230/460 V
• Phase: 3
• Output HP: 0.50 & 0.50 Hp
• Output KW: 0.37 & 0.37 kW
• Speed: 1140 & 950 rpm
• Service Factor: 1.15 & 1.00
• Frame: 56C
• Enclosure: Totally Enclosed Fan Cooled
• Thermal Protection: No Protection
• Efficiency: 72 & 68 %
• Ambient Temperature: 40 °C
• Frequency: 60 & 50 Hz
• Current: 2.1/1.05 & 2.2/1.1 A
• Power Factor: 61.5
• Duty: Continuous
• Insulation Class: F
• Design Code: B
• KVA Code: J
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 43
• Number of Speeds: 1
• Electrical Type: Squirrel Cage Inverter Rated
• Starting Method: Line Or Inverter
• Poles: 6
• Rotation: Reversible
• Resistance Main: 51.8 Ohms
• Mounting: Bolt-on Base
• Motor Orientation: Horizontal Or Up Or Down
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: NEMA 56
• Shaft Diameter: 0.625 in
• Assembly/Box Mounting: F1 F2/F3 CAPABLE
• Inverter Load: CONSTANT 10:1
• Motor Phase: 3 ph
• Motor Horsepower: 1/2 hp
• Synchronous Rpm: 1200 rpm / 1000 rpm
• Country of Origin: Mexico
• Motor Supply Voltage: 190/380 V, 230/460 V
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Frequency Rating: 60 Hz
• Duty Condition Type: Continuous
• NEMA Design Class: B
• IP Rating: 43
• Overload Protector: No Protection
• Ambient Operating Temp. (Celsius): 40
• Bearing Type: Ball
• F/L Amps: 2.0-2.1/1.1
• Hz: 60
• RPM: 1140
• Rot.: Reversible
• Shaft Diam.: 5/8"
