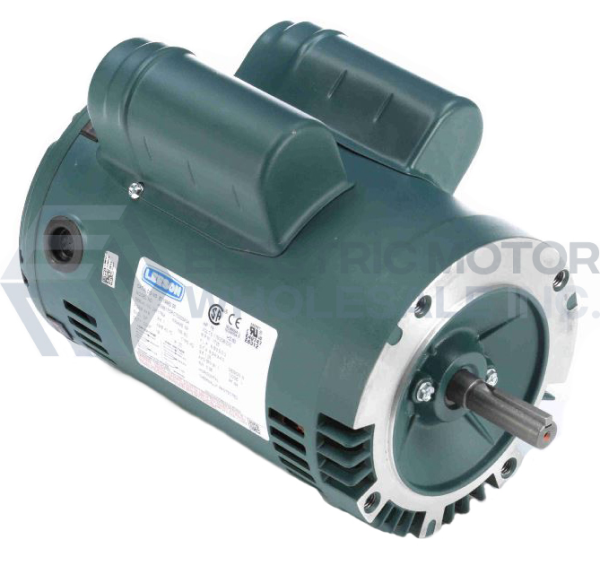

Leeson E113334.00 AC Motor 3 hp 3450 rpm

Product Description

Leeson E113334.00 is an AC motor designed for general purpose applications. This motor operates at three horsepower and reaches a speed of three thousand four hundred fifty revolutions per minute. It uses a single phase for operation and is rated for sixty hertz. The voltage rating is two hundred thirty volts, and it is suitable for round mounting. Its design includes an open drip-proof enclosure and fits into a 56C frame.

• Power: 3 hp
• Speed: 3450 rpm
• Frame type: 56C

Product Highlights

This motor is built for various applications where reliable performance is critical. It supports selective clockwise rotation and comes with bearings rated at 6203 for durability.

Product Information

Standard Information

• Brand: Leeson
• Part Number: E113334.00

Technical Specifications

• Frame Material: Rolled Steel
• Phase: Single Phase
• Hz: 60
• Enclosure Designation: Open Drip Proof
• HP: 3
• Motor Application: General Purpose
• Rotation: Selective CW
• Frame: 56C
• Service Factor: 1
• Poles: 2
• RPM: 3450 rpm
• Drive End Bearing: 6203
• Open End Bearing: 6203
• Voltage Rating: 230
• Mounting: Round
• Enclosure: ODP
• Insulation: B
• Efficiency Group: 84 %
• EAN or UPC: 691720991107
