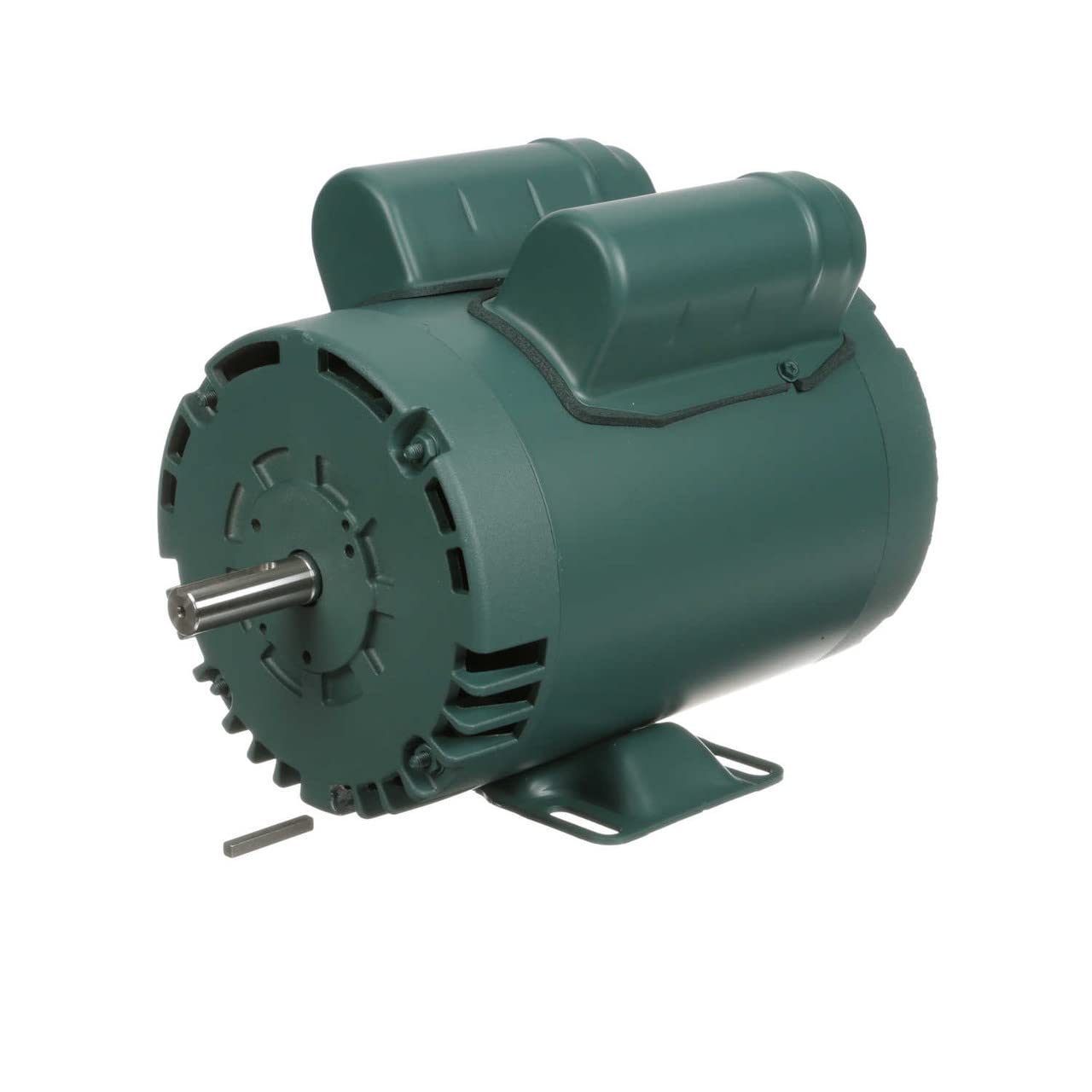

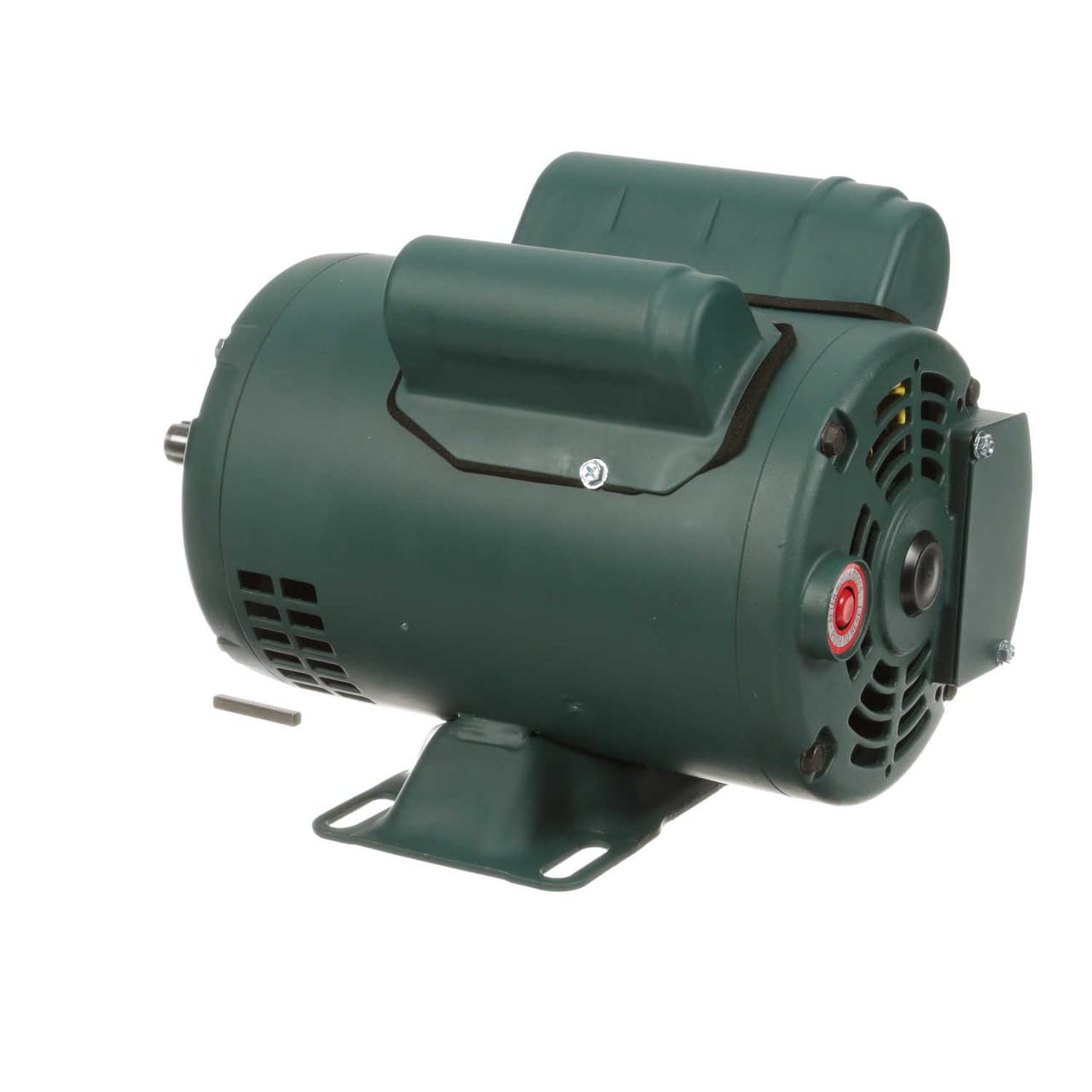

Leeson E113266.00 General Purpose Drip-Proof Motor 1.5HP 56H Frame

Product Description

The Leeson E113266.00 is a general purpose drip-proof motor with a 56H frame and rigid mounting. This single-phase motor delivers 1.5HP and operates at 1800 RPM with a 115/230V voltage and 60Hz frequency. It is suitable for various general purpose applications requiring a durable and efficient motor.

• Durable rolled steel construction
• Premium efficiency promotes improved reliability
• UL recognized component listing and CSA certification ensures safety

Product Highlights

This Leeson motor is designed for general purpose use, offering reliable performance and robust construction for demanding applications.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: E113266.00
• Country of Origin: United States

Technical Specifications

• Speed: 1800 RPM
• Voltage: 115/230 V
• Full Load Amps: 13/6.5
• Open End Bearing: 6203
• Service Factor: 1.15
• Rotation: Selective CCW
• Insulation Class: B
• Enclosure Designation: Open Drip Proof
• Drive End Bearing: Ball
• Frame: 56H
• Mounting: Rigid Base
• Enclosure: ODP
• Motor Application: General Purpose
• Frame Material: Rolled Steel
• Phase: Single Phase
• Poles: 4
• Efficiency Group: 83.8 %
• Hz: 60
• Horsepower: 1.5
• Output HP: 1.50 Hp
• Output KW: 1.1 kW
• Frequency: 60 Hz
• Thermal Protection: Manual
• Ambient Temperature: 40 °C
• Current: 13.0/6.5 A
• Power Factor: 89
• Duty: Continuous
• Design Code: NO DESIGN CODE
• KVA Code: J
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: N
• IP Code: 22
• Number of Speeds: 1
• Electrical Type: Capacitor Start Capacitor Run
• Starting Method: Across The Line
• Resistance Main: 0 Ohms
• Motor Orientation: Horizontal Or Shaft Down
• Opp Drive End Bearing: Ball
• Shaft Type: Keyed
• Overall Length: 12.87 in
• Frame Length: 8.00 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 1.88 in
• Assembly/Box Mounting: F1 ONLY
• Model no: M6K17DB55AA
• Product Type: General Purpose
• Height: 10.88
• Length: 14.44
• Width: 7.94
• Rated Load (HP): 1 1/2
• AC Frequency Rating: 60 Hz
• Enclosure Type: ODP (Open Drip-Proof)
• Base RPM: 1800
• AC Motor Type: Induction/Asynchronous
• NEMA Frame Suffix: H
• AC Phase: Single Phase
• Efficiency: 83.8
