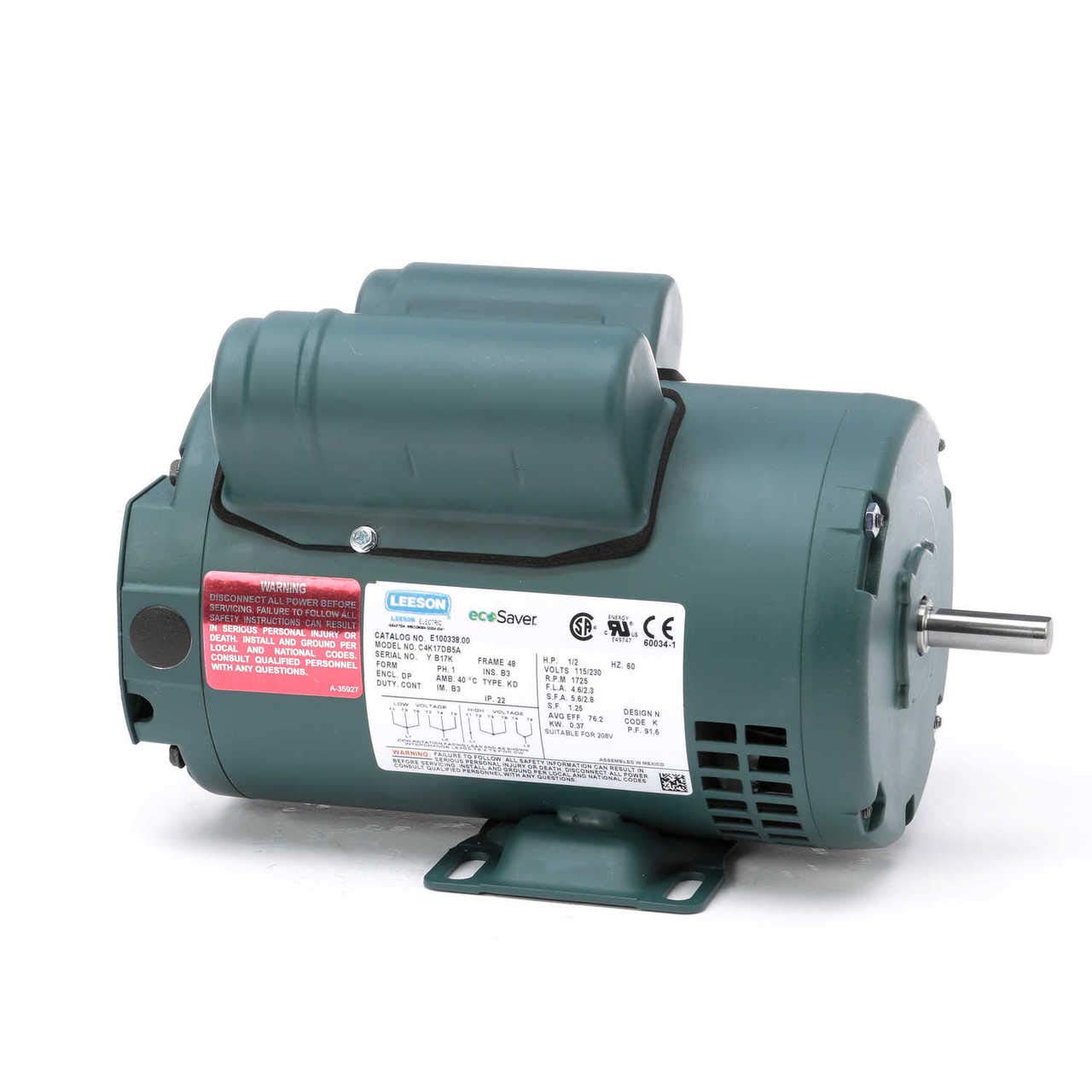

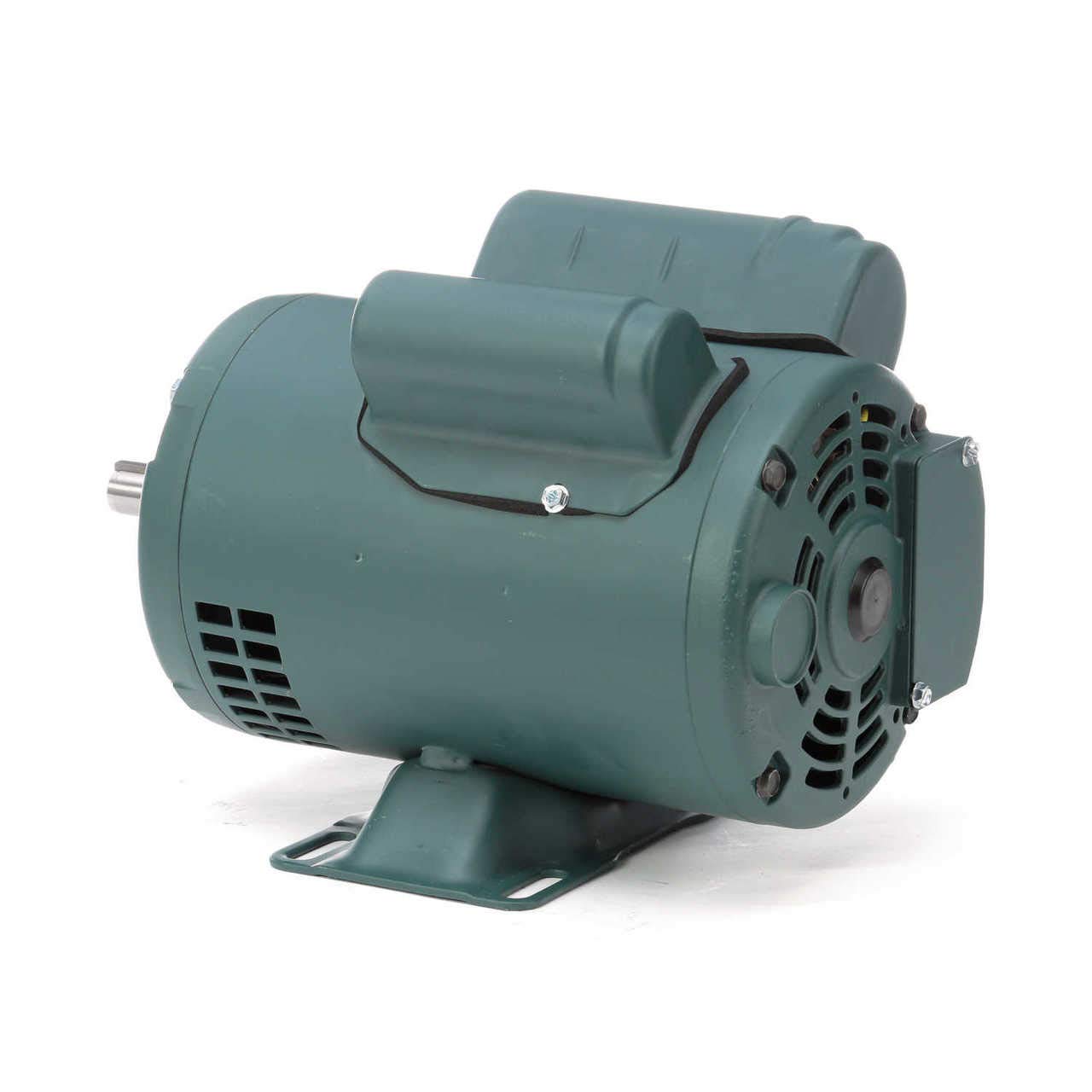

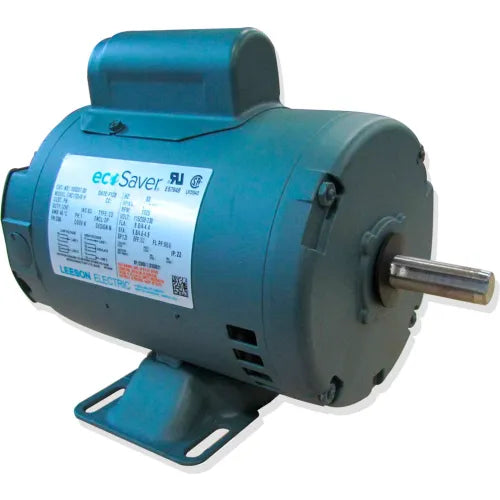

Leeson E100338.00 AC Motor 1/2 hp 1725 rpm 48 Frame

Product Description

The LEESON E100338.00 is an AC motor designed for general purpose applications. This motor features a 1/2 horsepower, 1725 RPM, and operates on a single phase, 60 Hz, with a 115/230 voltage rating. It has a rigid base mount, ODP enclosure, and a 48 frame.

• Designed for general purpose motor applications.
• Features a rigid base mount and ODP enclosure.
• Complies with the Dept. of Energy Small Motor Rule 2010.

Product Highlights

This AC motor is suitable for pumps, compressors, blowers, fans, and other standard industrial applications where minimal water and dust exposure is expected.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: E100338.00
• Country of Origin: Mexico

Technical Specifications

• Full Load Amps: 4.6/2.3
• RPM: 1725 rpm
• Drive End Bearing: Ball
• Service Factor: 1.25
• Frame Material: Rolled Steel
• Phase: Single Phase
• Mounting: Rigid Base
• Poles: 4
• Hz: 60
• Enclosure: ODP
• Voltage Rating: 115/230
• Insulation: B
• Enclosure Designation: Open Drip Proof
• Rotation: Selective CCW
• Open End Bearing: 6203
• Motor Application: General Purpose
• HP: 1/2
• Frame: 48
• Efficiency Group: 76.2 %
• Brand: Leeson
• Design: Capacitor Start Inductor Run
• Nameplate RPM: 1725 rpm
• Enclosure Type: Open/Drip Proof
• Efficiency Type: Premium
• Temperature Rise: 25 °F
• Mounting Location: Rigid
• Shaft Length: 1-1/2 in
• Motor RPM 60 Hertz: 1800 rpm
• Thermal Protection: No
• Ambient Temperature: 40 °C
• Shaft Diameter: 1/2
• Degree of Protection: IP22
• Full Load Efficiency: 76.2
• Bearing Opposite End: 6203
• Manufacturers Part Number: E100338.00
• Power Factor at Full Load: 91.6
• Compatible Part/Model Number: Baldor L1209, WEG .5018OS1BC48, Marathon C164
• Output HP: 0.50 Hp
• Output KW: 0.37 kW
• Speed: 1725 rpm
• Frequency: 60 Hz
• Current: 4.6/2.3 A
• Power Factor: 91.6
• Duty: Continuous
• Design Code: N
• KVA Code: K
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 22
• Number of Speeds: 1
• Electrical Type: Capacitor Start Capacitor Run
• Starting Method: Across The Line
• Resistance Main: 0 Ohms
• Motor Orientation: Horizontal
• Opp Drive End Bearing: Ball
• Shaft Type: NEMA 48
• Overall Length: 11.12 in
• Frame Length: 7.50 in
• Shaft Extension: 1.5 in
• Assembly/Box Mounting: F1 ONLY
• Manufacturer: Leeson
• Product Type: ELECTRIC_MOTOR
• Product Group: BISS
• Model / MPN: E100338.00
• Number of Items: 1.0
