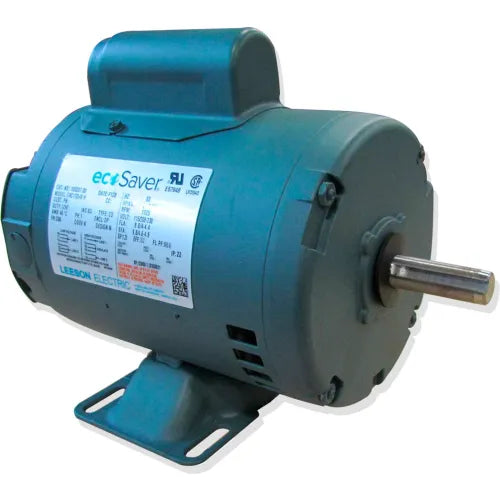

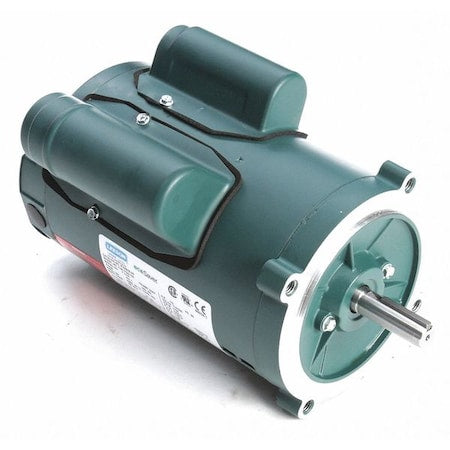

Leeson E100025.00 Motor, 1/2HP, 1800RPM, S56C Odp 115/230V

Product Description

The LEESON E100025.00 is designed for use where water and dust exposure is minimal. Ideally suited for pumps, compressors, blowers, fans and other standard industrial applications. This motor complies with the Dept. of Energy Small Motor Rule 2010. It is a capacitor-start/run general purpose motor.

• For use where water and dust exposure is minimal.
• Ideally suited for use on pumps, compressors, blowers, fans and other standard industrial applications.
• Complies with the Dept. of Energy Small Motor Rule 2010 which took effect March 2015.

Product Highlights

This general purpose motor has a horsepower of 1/2 HP, a speed of 1800 RPM, and operates at 115/230V. It features an open dripproof enclosure and a 56C frame.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: E100025.00
• Country of Origin: Mexico

Technical Specifications

• Brand: Leeson
• Frame: 56C
• Hertz: 60 Hz
• Phase: 1
• Poles: 4
• Voltage: 115/230 V
• Is_Motor: Yes
• Enclosure: ODP
• RPM Range: 1701-1800 rpm
• Horsepower: 1/2 HP
• Nameplate RPM: 1725 rpm
• Enclosure Type: Open/Drip Proof
• Full Load Amps: 4.6/2.3 FLA
• Service Factor: 1.25
• Efficiency Type: Premium
• Insulation Class: B
• Temperature Rise: 25 °F
• Mounting Location: C-Face Footless
• Motor RPM 60 Hertz: 1800 rpm
• Ambient Temperature: 40 °C
• Degree of Protection: IP22
• Full Load Efficiency: 76.2
• Manufacturers Part Number: E100025.00
• Power Factor at Full Load: 91.6
• Drive End Bearing Size: 6203
• Opposite End Bearing Size: 6203
• Duty Cycle: Continuous
• Shaft Dia.: 5/8 in
• NEMA Design: B
• Motor Design: Capacitor-Start/Run
• Shaft Length: 1 7/8 in
• No. of Speeds: 1
• Usable @ 200V: No
• Usable @ 208V: No
• Frame Material: Rolled steel
• Inverter Rated: No
• Motor Bearings: Ball
• Overall Length: 11 1/2 in
• Motor Application: General Application
• Capacitor Required: Yes
• Motor Shaft Design: Keyed
• Nominal Efficiency: 76.2 %
• Motor Mounting Type: Face
• Motor Frame Material: Steel
• Motor Shaft Rotation: CW/CCW
• Motor Enclosure Design: Open Dripproof
• Motor Mounting Position: Horizontal
• Motor Thermal Protection: None
• Model no: C4K17DC14A
• Product Type: General Purpose
• Output KW: 0.37 kW
• Frequency: 60 Hz
• Speed: 1725 RPM
• Current: 2.3 Amps
• Frame Size: S56C
• Motor Orientation: Horizontal
• Number of Poles: 4
• Mounting Type: Round
• Overload Protector: No
• Electrical Type: Capacitor Start Capacitor Run
• Starting Method: Across The Line
• Design Code: N
• KVA Code: K
• Frame Length: 7.50 in
• Shaft Diameter: 0.625 in
• Opp Drive End Bearing: Ball
• Drive End Bearing: Ball
• Shaft Extension Location: 1.88 in
• Shaft Rotation: Selective Counterclockwise
• Shaft Type: NEMA 56
• Agency Approvals: UL, CSA, CE
• Mounting: C-Face
• Current Rating: 4.6 A
• Composition: Steel
