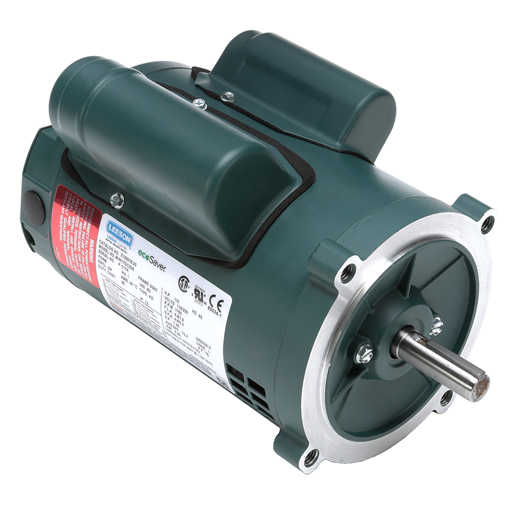

Leeson E100018.00 AC Motor 0.33 hp 1755 rpm

Product Description

The Leeson E100018.00 is an AC motor designed for general-purpose applications. This motor operates at a power rating of zero point thirty-three horsepower and delivers a speed of seventeen hundred fifty-five revolutions per minute. It features single-phase operation and can use both one hundred fifteen and two hundred thirty volts. The motor's round mounting design offers versatility in installation.

• 0.33 hp performance
• 1755 RPM speed
• Open Drip Proof enclosure

Product Highlights

This motor is suitable for various industrial and commercial applications. Its robust design ensures reliability and efficiency in operation.

Product Information

Standard Information

• Brand: Leeson
• MPN: E100018.00

Technical Specifications

• Insulation: B
• Phase: Single Phase
• Enclosure Designation: Open Drip Proof
• Voltage Rating: 115/230
• Full Load Amps: 3.8/1.9
• Frame: S56C
• Drive End Bearing: 6203
• RPM: 1755
• Poles: 4
• Mounting: Round
• Frame Material: Rolled Steel
• Open End Bearing: 6203
• Rotation: Selective CCW
• Hz: 60
• Efficiency Group: 72.4%
• Weight: 16.0 LB
• EAN or UPC: 691720990971
