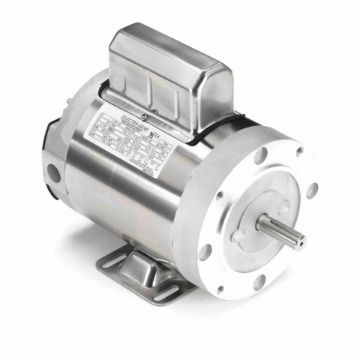

LEESON 6439191252 AC Motor 1 hp 115/230 VAC 60 Hz 56C Frame

Product Description

LEESON AC Motor 6439191252 is a four-pole motor designed for various industrial applications. This motor features a totally enclosed non-vented enclosure for optimal performance. It operates at one horsepower and can run on either 115 or 230 VAC at sixty hertz.

• 1 hp with a speed of 1725 rpm
• Capacitor start for high performance
• Suitable for boat hoist applications

Product Highlights

This motor is ideal for industrial needs, ensuring reliability and efficiency in various tasks.

Product Information

Standard Information

• Brand: LEESON
• MPN: 6439191252

Technical Specifications

• Frame Size: 56C
• Phase: 1
• Speed: 1725 rpm
• Material: Stainless Steel
• Rotation: Selective CCW
• Dimensions: 6.5 in Dia x 11.7 in L x 8.7 in H
• Horsepower: 1 hp
• Shaft Size: 0.63 in Dia x 1.88 in L
• Bearing Type: Ball
• Mounting Type: C-Face/Rigid Base
• Torque Rating: 48.4 ft-lb
• Enclosure Type: Totally Enclosed Nonvented (TENV)
• Service Factor: 1.15
• Voltage Rating: 115/230 VAC
• Amperage Rating: 13.6/6.8 A
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Number of Speeds: 1
• Torque Speed Range: 10:1
• Temperature Rating: 40 deg C
• Country of Origin: CN
