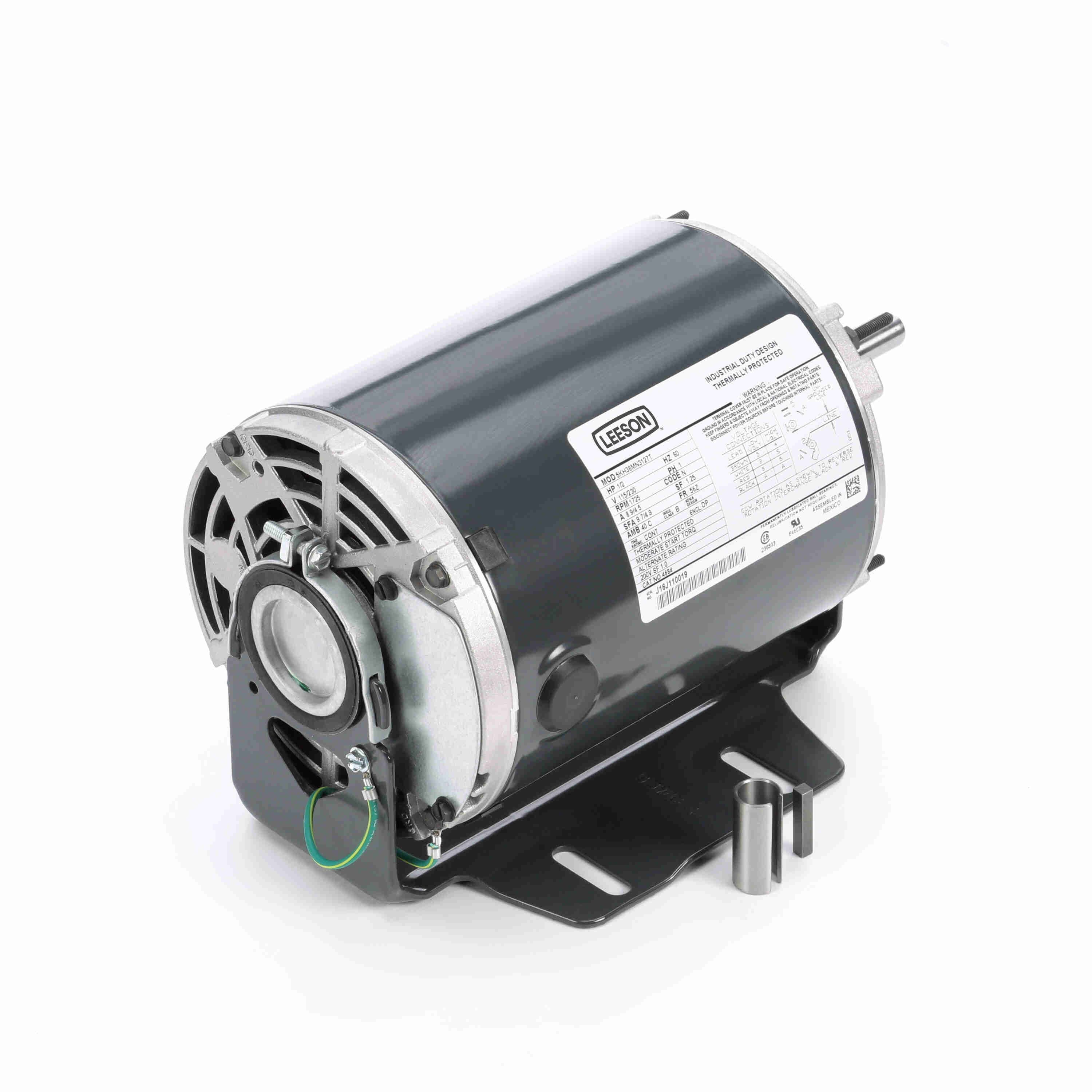

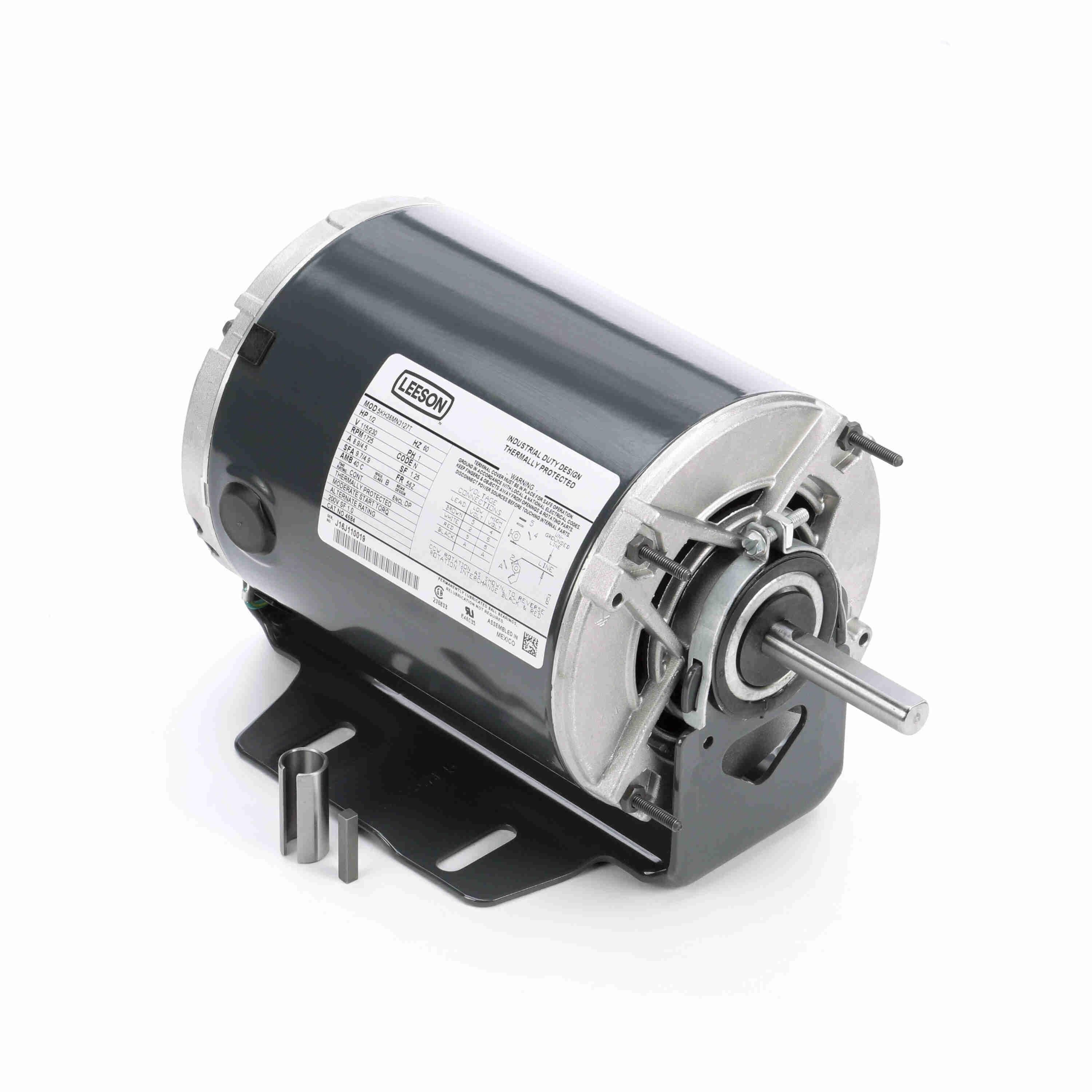

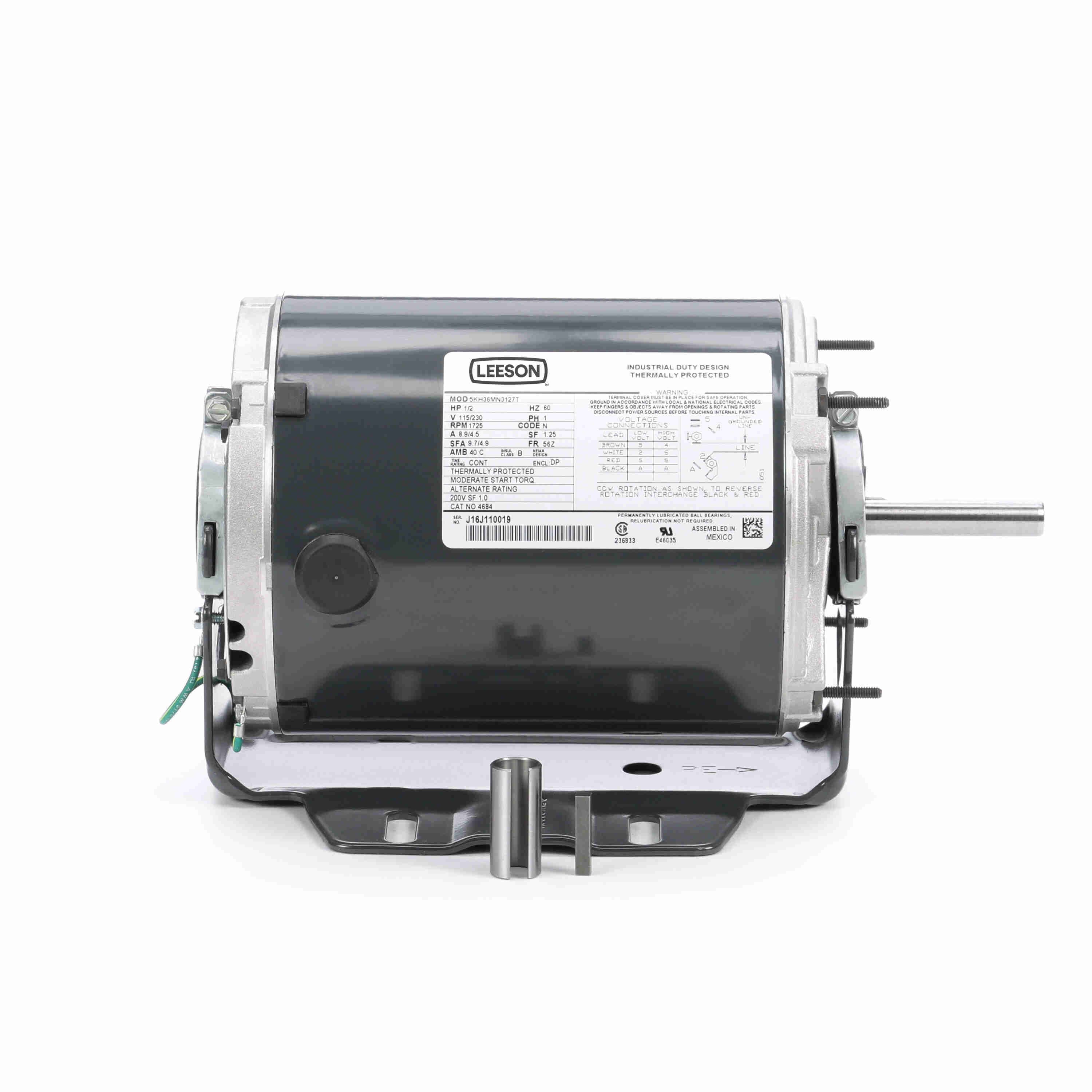

Leeson 5KH36MN3127T Fan and Blower Motor 0.5 Hp

Product Description

The LEESON 5KH36MN3127T is a 0.5 horsepower fan and blower motor. It features an automatic reset thermal protector to prevent overheating and a patented MAXGuard insulation system for superior protection when used with a variable frequency drive. This motor is designed for consistent operation in various environments.

• Automatic reset thermal protector prevents overheating.
• MAXGuard insulation system offers protection for use with a variable frequency drive.
• Permanently lubricated, double-sealed bearings extend the lifetime of the motor.

Product Highlights

This LEESON fan and blower motor is suitable for applications requiring a durable and thermally protected motor.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 5KH36MN3127T
• Country of Origin: Mexico

Technical Specifications

• Hz: 60
• No. of Phases: Single
• Frame Length: 6.22 in
• Enclosure: DP
• Shaft Diameter: 0.5 in
• ODE Bearing Size: 6203
• Overload Protector: Automatic
• Voltage: 115/230V AC
• Insulation Class: B
• Electrical Type: Split Phase
• Starting Type: Switch and Mech
• ODE Bearing Type: Ball
• Mounting Type: Resilient Base
• Motor Orientation: ANY
• Ambient Temperature Range [Max]: 104 °F
• DE Bearing Type: BALL
• HP: 0.5
• Service Factor: 1.25
• Frame: 56Z
• KVA Code: N
• Efficiency: 57.6
• Standard: CSA, UL Recognized
• Amps: 8.9,4.5
• Rotation: Counterclockwise/Clockwise
• DE Bearing Size: 6203
• No. of Speeds: 1
• Shaft Extension: 2.25 in
• No. of Poles: 4
• Speed [Max]: 1725 rpm
• Frame Material: Rolled Steel
• Duty: Continuous
• Output HP: 1/2 Hp
• Output KW: 0.37 kW
• Speed: 1725 rpm
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 8.9/4.5 A
• Poles: 4
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Shaft Type: Special Extension
• Motor Category: Air Handling (HVAC) Motors
• Motor Phase: 1 ph
• Motor Horsepower: 1/2 hp
• Synchronous Rpm: 1800 rpm
• Motor Supply Voltage: 115/230 V
• Enclosure Type: DP (Drip Proof)
• Frequency Rating: 60 Hz
• Duty Condition Type: Continuous Duty
• Base RPM: 1725 rpm
• Full Load Current: 8.90 / 4.50 A
• Full Load Efficiency: 57.6 %
• Motor Poles: 4
• Description Keyword: 0.50 hp
• Overall Length C Dimension: 10.8 in
• IP Rating: 12
• Standards Met: UL
• Applications: Blowers, Fans
• Manufacturer Upc Number: 722856039767
• Product Type: Air Handling (HVAC) Motors
• RPM: 1700 - 1800
• HP (Parameters @ 60 Hertz): 1/2
• Voltage (Parameters @ 60 Hertz): 115/230
• RPM (Parameters @ 60 Hertz): 1725
• SF (Parameters @ 60 Hertz): 1. 25
• Phase (Specifications): 1
• Ambient: 40
• Mounting: RB
• Orientation: Horizontal or Vertical
• Item: HVAC Motor
• Duty Cycle: Continuous
• Nameplate Rpm: 1725 RPM
• Nominal Efficiency: 57.6%
• Number Of Speeds: 1
• Overall Length: 10 11/16"
• Rpm Range: 1701-1800 RPM
• Shaft Dia.: 1/2"
• Shaft Length: 2 1/4"
• Shaft Orientation: Horizontal/Vertical
• Usable @ 208v: Yes
• Part No.: 5KH36MN3127T
• Category: Motor
