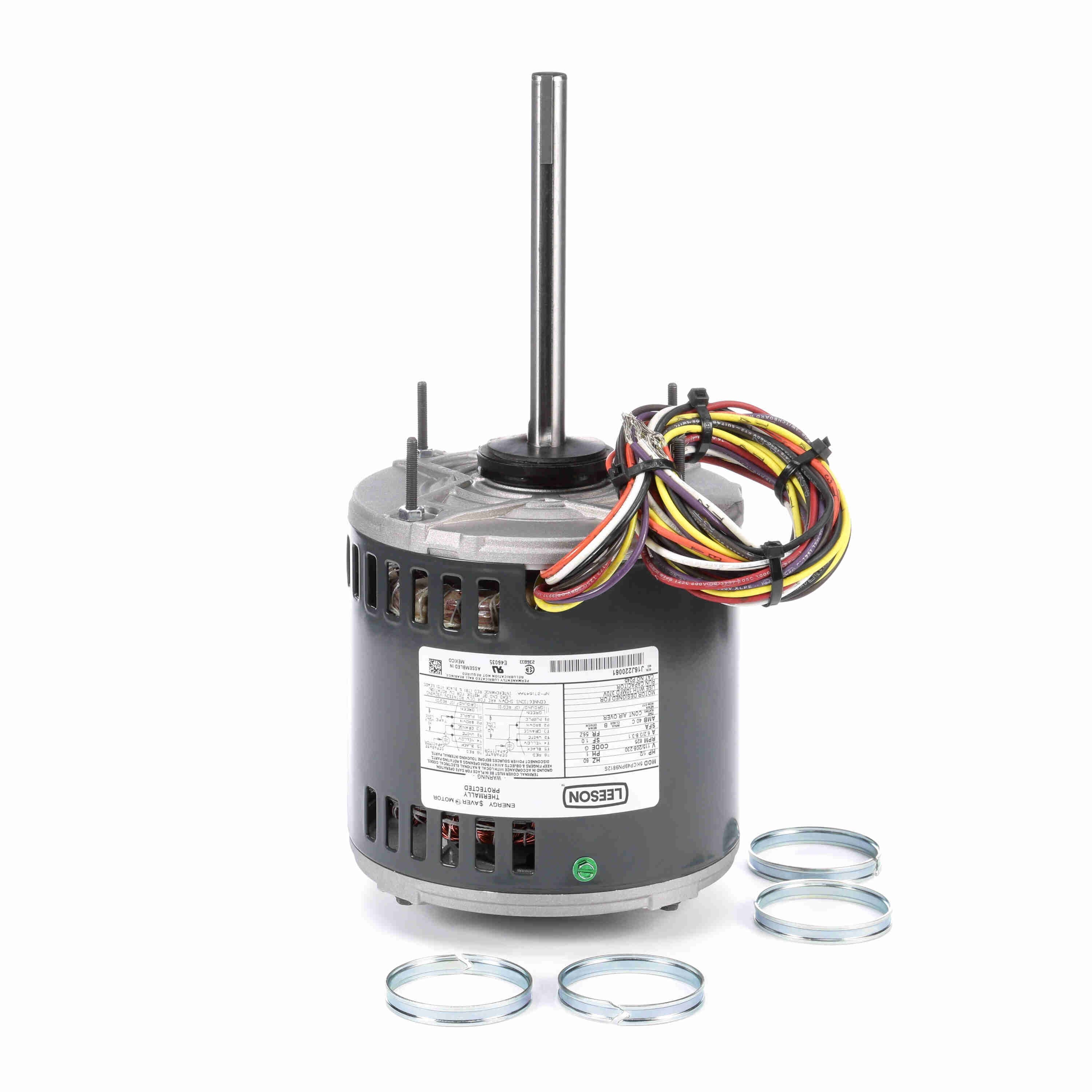

Leeson 5KCP49PN9812S P245 Condenser Fan Motor 0.5 HP 56Z

Product Description

The LEESON 5KCP49PN9812S P245 is a condenser fan motor operating at 115/208-230V, 60 Hz. This 0.5 HP single-phase electric motor features a 56Z NEMA frame and an Open Drip Proof (ODP) enclosure. It is designed for continuous duty and operates at 825 RPM, suitable for HVAC applications.

• 0.5 HP power output
• Operates at 825 RPM
• Dripproof enclosure

Product Highlights

The LEESON 5KCP49PN9812S is ideal for condenser fan applications requiring a reliable and efficient motor.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 5KCP49PN9812S
• Country of Origin: MX

Technical Specifications

• Phase: 1
• Output HP: 0.50 Hp
• Output KW: 0.37 kW
• Voltage: 115/208-230V AC
• Speed (RPM): 825 rpm
• Frame Size: 56Z
• Enclosure: Drip Proof
• Service Factor: 1.00
• Thermal Protection: Automatic
• Efficiency: 57.5 %
• Ambient Temperature: 40 C
• Frequency: 60 Hz
• Current: 6.2,3.8-3.1 A
• Duty: Continuous
• Insulation Class: B
• KVA Code: G
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Yes
• CE: N
• Number of Speeds: 1
• Mounting: Resilient Ring
• Motor Type: Permanent Split Capacitor
• Motor Enclosure Design: Dripproof
• Motor Mounting Position: All Angle
• Motor Shaft Rotation: Selective CCW
• Item: HVAC Motor
• Ambient Temp.: 40 C
• Bearing Type: Ball
• Duty Cycle: Continuous
• Full Load Amps: 6.2/3.1-3.8A
• Motor Thermal Protection: Automatic
• Nameplate Rpm: 825 RPM
• Shaft Orientation: Horizontal/Vertical
• Motor Category: Air Handling (HVAC) Motors
• Motor Phase: 1 ph
• Motor Horsepower: 1/2 hp
• Synchronous Rpm: 900 rpm
• Motor Supply Voltage: 115/208-230 V
• Enclosure Type: DP (Drip Proof)
• Frequency Rating: 60 Hz
• Duty Condition Type: Continuous Duty
• Base RPM: 825 rpm
• Full Load Current: 6.2 A
• Full Load Efficiency: 57.5 %
• Motor Poles: 8
• Description Keyword: 0.50 hp
• Shaft Diameter: 0.6250 in
• Overall Length C Dimension: 13.66 in
• Frame Material: Rolled Steel
• Standards Met: UL
• Product Type: Air Handling (HVAC) Motors
• Number of Poles: 8
• Base Speed (RPM): 900
• C Dimension (in): 13.66
• DE Bearing Type: 6203
• Electrical Type: Permanent Split Capacitor(PSC)
• Enclosure Acronym: ODP
• Frame Length (in): 5.34
• Locked Rotor KVA Code: G
• Manufacturer Name: Regal Beloit
• ODE Bearing Size: 6203
• ODE Bearing Type: BALL
• Shaft Extension Length (in): 6
• Synchronous Speed: 900 RPM @ 60 Hz (8 Poles)
