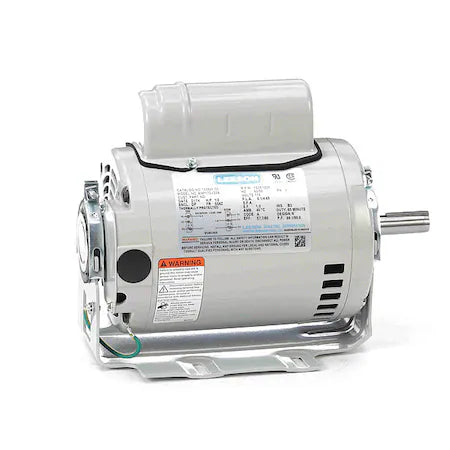

Leeson 191743.00 Instant Reverse Motor 1/2 HP Single Phase

Product Description

The Leeson 191743.00 Instant Reverse Motor is designed for specialized applications requiring instant alternation between clockwise and counterclockwise rotation. This makes it especially useful for doors or gates that require precise and immediate direction changes.

• Single phase with a capacitor-start motor design
• Operates at a voltage of 115V AC and outputs 1/2 HP
• Suitable for intermittent duty cycles with a manual thermal protection

Product Highlights

Leeson's Instant Reverse Motor facilitates a seamless operation with a nameplate RPM of 1,625, further supported by its robust steel frame construction and ball bearings for longevity. The open dripproof enclosure design ensures the motor remains protected in various working environments.

Product Information

Standard Information

• Motor Design: Capacitor-Start
• Phase: Single
• Full Load Amps: 4.6
• Hz: 60/50

Technical Specifications

• Frame: S56
• Shaft Diameter: 5/8 inches
• Motor Shaft Rotation: CCW
• Motor Enclosure Design: Open Dripproof
• Motor Mounting Type: Cradle Base
• Max. Ambient Temp.: 40 Degrees C
• Duty Cycle: Intermittent
• Standards: CSA, UL
