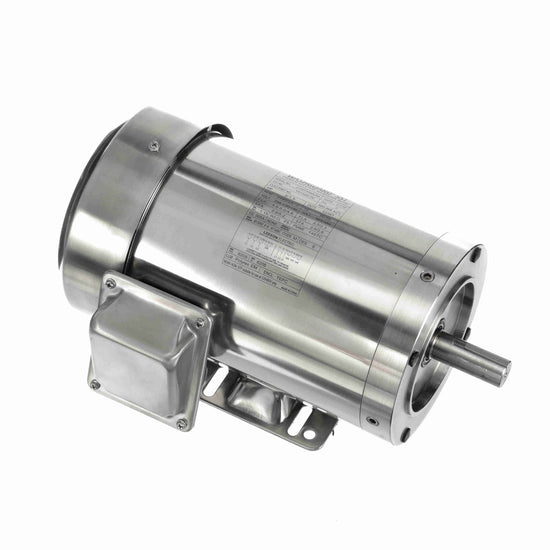

Leeson 191490.00 AC Motor 2HP 3490RPM Rigid Base TEFC

Product Description

The Leeson 191490.00 is an AC motor offering reliable performance for general purpose applications. With a two horsepower rating and a speed of 3490 RPM, this motor is suitable for various industrial uses. It features a rigid base mount and a totally enclosed fan cooled (TEFC) design that protects it from dust and moisture.

• Voltage rating of 208-230/460V
• Three-phase operation
• Includes a stainless steel frame for durability

Product Highlights

This motor is engineered for efficiency and longevity, making it ideal for demanding environments.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 101408163

Technical Specifications

• Phase: Three Phase
• Frame Material: Stainless Steel
• Efficiency Rating: 85.5%
• Enclosure Type: TEFC
• Insulation Class: F
• Application: General Purpose (Paint Free)
• Enclosure Designation: Totally Enclosed Fan Cooled
• Poles: 2
• Voltage Rating: 208-230/460V
• Mounting Type: Rigid Base
• Speed: 3490 RPM
• Weight: 50 LB
• Full Load Amps: 5.3-5/2.5
• Service Factor: 1.15
