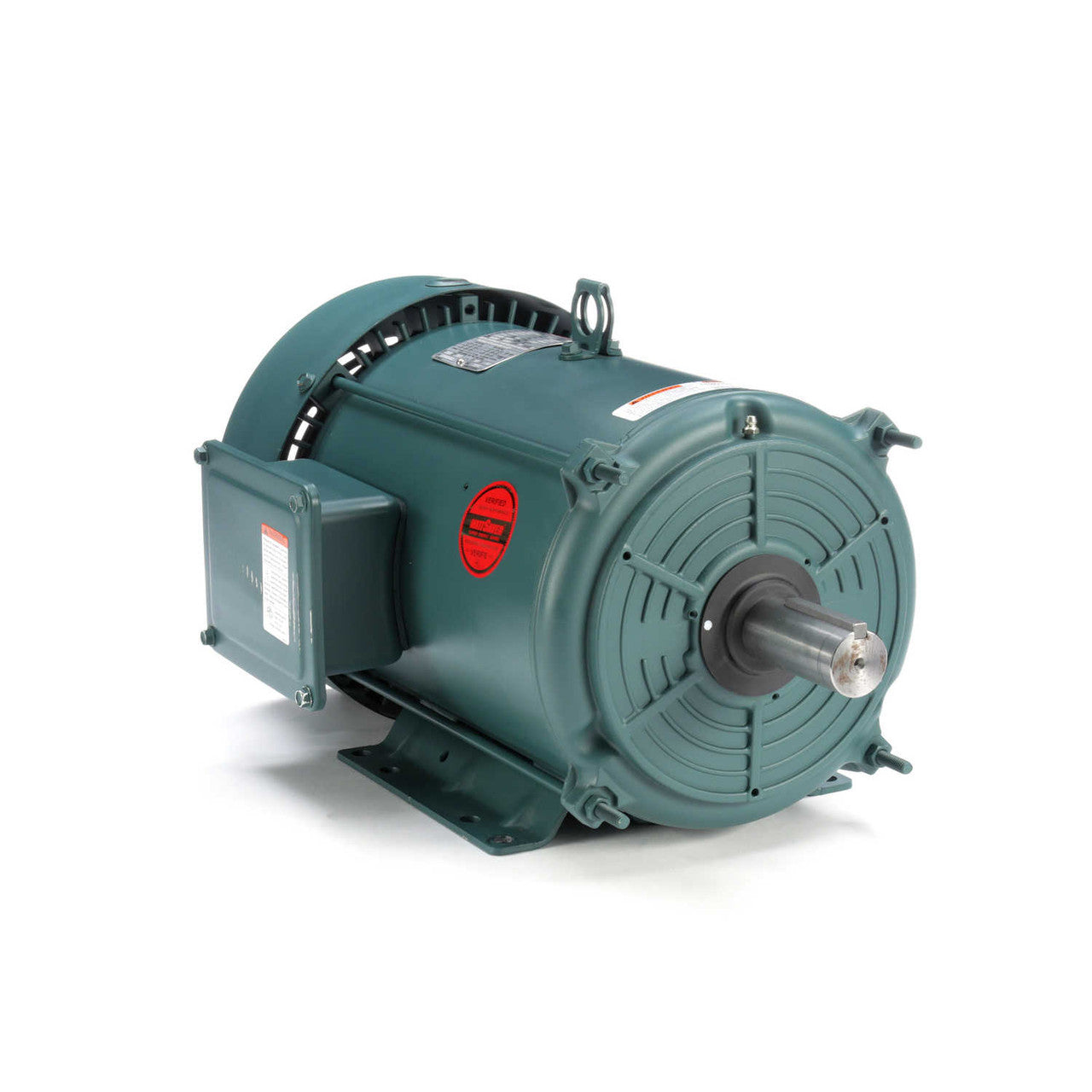

Leeson 140756.00 WATTSAVER� General Purpose Motor, 7.50 HP, 3 Ph, 60 Hz, 230/460 V, 3600 RPM, 213T Frame

Leeson 140756 WATTSAVER® General Purpose Motor, 7.50 HP, 3 Ph, 60 Hz, 230/460 V, 3600 RPM, 213T Frame

KEY FEATURES
Premium efficient ratings
Inverter-rated; Continuous duty
Class F insulation system – 140 frame and higher
Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
Dynamically balanced rotors
Torques exceed NEMA performance standards; UL recognized and CSA certified

General Specifications
Packaged Length: 26.88 IN
Packaged Height: 14.38 IN
Packaged Width: 18 IN
Weight: 156.00 LB
Country of Origin: Mexico

Nameplate Specifications
• Output HP: 7.50 Hp
• Frequency: 60 Hz
• Current: 17.8/8.9 A
• Service Factor: 1.15
• Efficiency: 90.2 %
• Duty: Continuous
• Design Code: B
• Frame: 213T
• Thermal Protection: No Protection
• Drive End Bearing Size: 307
• UL: Recognized
• CE: Y
• Number of Speeds: 1
• Output KW: 5.6 kW
• Voltage: 230/460 V
• Speed: 3540 rpm
• Phase: 3
• Power Factor: 87
• Insulation Class: F
• KVA Code: H
• Enclosure: Totally Enclosed Fan Cooled
• Ambient Temperature: 40 °C
• Opp Drive End Bearing Size: 206
• CSA: Y
• IP Code: 43

Technical Specifications
• Electrical Type: Squirrel Cage Induction Run
• Poles: 2
• Resistance Main: 1.163 Ohms
• Motor Orientation: Horizontal
• Opp Drive End Bearing: Ball
• Shaft Type: T
• Frame Length: 11.15 in
• Shaft Extension: 3.38 in
• Starting Method: Across The Line
• Rotation: Reversible
• Mounting: Rigid Base
• Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Overall Length: 19.84 in
• Shaft Diameter: 1.375 in
• Assembly/Box Mounting: F1/F2 CAPABLE
