Leeson 132082.00 WATTSAVER� 132082 General Purpose Motor 5 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, 184TC Frame

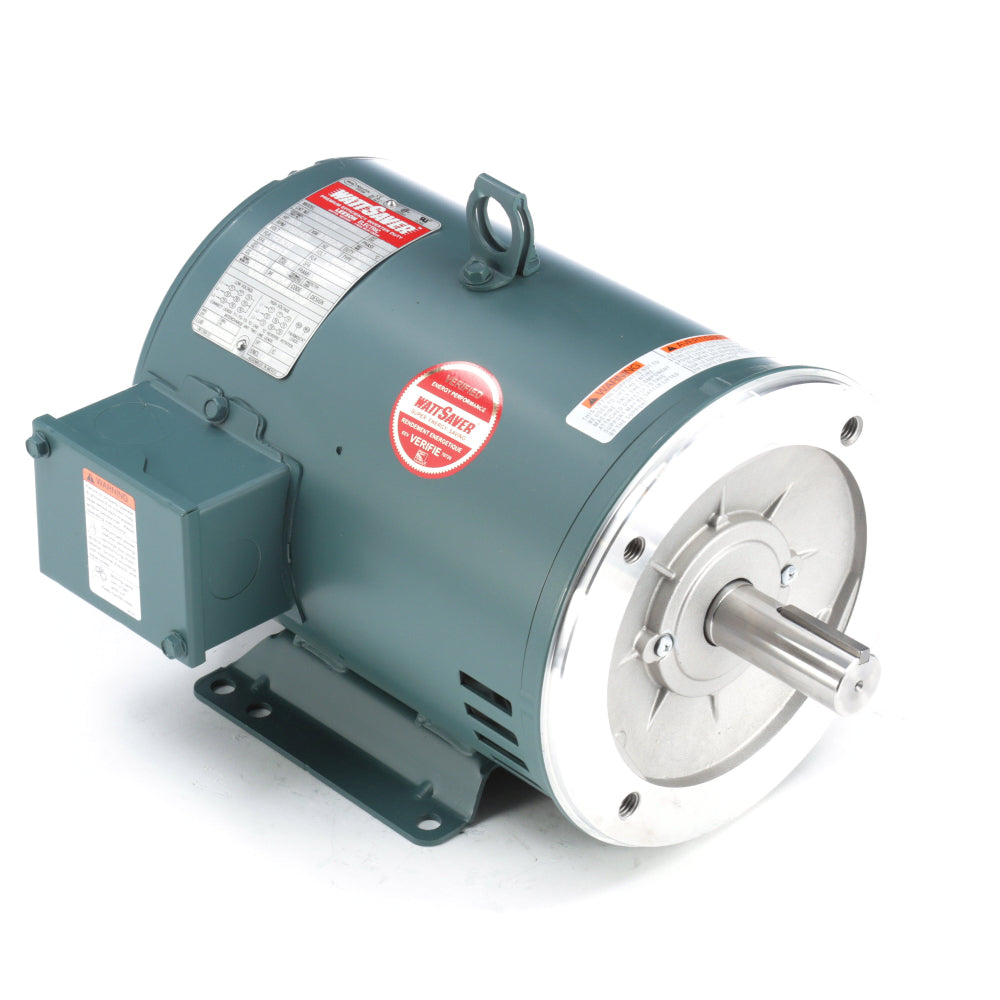

Leeson 132082 WATTSAVER® General Purpose Motor 5 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, 184TC Frame

KEY FEATURES
Premium efficient ratings
Inverter-rated; Nameplated for 50 Hz operation
Class B insulation systems, Class F 140 frame and higher
Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
Rolled steel
UL recognized and CSA certified

General Specifications
• Weight: 97.00 LB
• Packaged Length: 17.94 IN
• Packaged Width: 13.06 IN
• Packaged Height: 12.88 IN

Nameplate Specifications
• Output HP: 5 Hp
• Frequency: 60 Hz
• Current: 12.6/6.3 A
• Service Factor: 1.25
• Efficiency: 89.5 %
• Duty: Continuous
• Design Code: B
• Frame: 184TC
• Thermal Protection: Thermostat
• Drive End Bearing Size: 6206
• UL: Recognized
• CE: Y
• Number of Speeds: 1
• Output KW: 3.7 kW
• Voltage: 230/460 V
• Speed: 1755 rpm
• Phase: 3
• Power Factor: 83
• Insulation Class: F
• KVA Code: J
• Enclosure: Drip Proof
• Ambient Temperature: 40 °C
• Opp Drive End Bearing Size: 6205
• CSA: Y
• IP Code: 22

Technical Specifications
• Electrical Type: Squirrel Cage Induction Run
• Starting Method: Across The Line
• Poles: 4
• Rotation: Reversible
• Resistance Main: 2.72 Ohms
• Mounting: Rigid Base
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: T
• Overall Length: 14.20 in
• Frame Length: 10.00 in
• Shaft Diameter: 1.125 in
• Shaft Extension: 2.75 in
• Assembly/Box Mounting: F1/F2 CAPABLE
