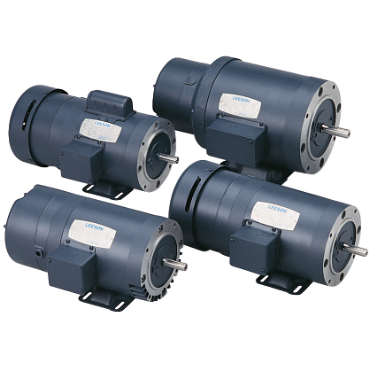

Leeson 122252.00 Brakemotor 1.5 hp 1800 rpm 208-230/460 Volts

Product Description

Leeson 122252.00 is a reliable brakemotor designed for effective stopping and holding. It operates at one point five horsepower and achieves a speed of one thousand eight hundred revolutions per minute. This motor is suitable for voltages ranging from two hundred eight to two hundred thirty or four hundred sixty volts.

• Fail-safe positive stop and hold feature
• Spring set brakes for reliable performance
• Manual release for power outage situations

Product Highlights

Leeson brakemotors provide added safety and convenience due to their robust design, featuring easy connection options for brake coil leads.

Product Information

Standard Information

• Brand: Leeson
• MPN: 122252.00

Technical Specifications

• HP: 1.5
• RPM: 1800
• Voltage: 208-230/460
• Phase: Three Phase
• Full Load Amps: 4.6-4.8/2.4
• Enclosure: TEFC
• Frame: 145TC
• Weight: 47.0 LB
• Brake Torque: 10 ft lb
• Efficiency Group: 86.5%
