Leeson 122179.00 White Duck� General Purpose Motor, 1 HP, 3 Ph, 60 Hz, 208-230/460 V, 1800 RPM, 143TC Frame

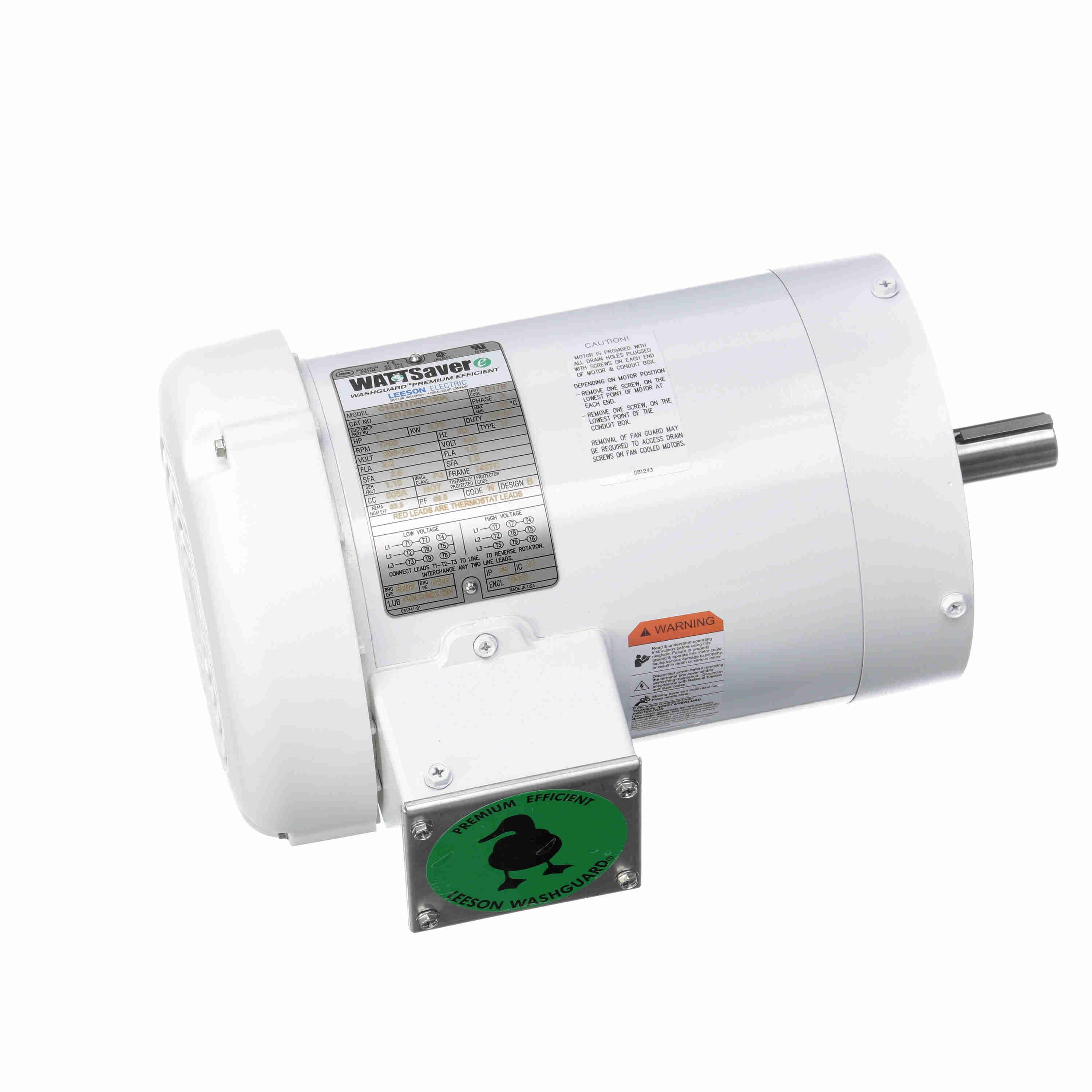

Leeson 122179 White Duck™ General Purpose Motor, 1 HP, 3 Ph, 60 Hz, 208-230/460 V, 1800 RPM, 143TC Frame

KEY FEATURES
USDA-approved white epoxy finish ensures resistance and protection against caustic cleaning solutions.
Sealed bearings shut out contaminants that lead to bearing failure.
Stainless steel output shaft seals protect against external contaminants.
Cast, white epoxy conduit boxes house electrical wiring.

General Specifications
• Packaged Length: 14.44 IN
• Packaged Height: 10.88 IN
• Weight: 38.00 LB
• Packaged Width: 10.44 IN
• Country of Origin: United States of America

Nameplate Specifications
• Output HP: 1 Hp
• Frequency: 60 Hz
• Current: 3.2/1.6 A
• Service Factor: 1.15
• Efficiency: 85.5 %
• Duty: Continuous
• Design Code: B
• Frame: 143TC
• Thermal Protection: Thermostat
• Drive End Bearing Size: 6205
• UL: Recognized
• CE: Y
• Output KW: 0.75 kW
• Voltage: 208-230/460 V
• Speed: 1760 rpm
• Phase: 3
• Power Factor: 68.5
• Insulation Class: F
• KVA Code: N
• Enclosure: Totally Enclosed Fan Cooled
• Ambient Temperature: 40 °C
• Opp Drive End Bearing Size: 6203
• CSA: Y
• IP Code: 55

Technical Specifications
• Electrical Type: Squirrel Cage Induction Run
• Poles: 4
• Resistance Main: 12.96 Ohms
• Motor Orientation: Horizontal
• Opp Drive End Bearing: Ball
• Shaft Type: T
• Frame Length: 7.00 in
• Shaft Extension: 2.25 in
• Starting Method: Across The Line
• Rotation: Reversible
• Mounting: Round
• Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Overall Length: 12.93 in
• Shaft Diameter: 0.875 in
• Assembly/Box Mounting: F1 ONLY
