Leeson 121940.00 AC Three Phase Totally Enclosed Motors

Product Description

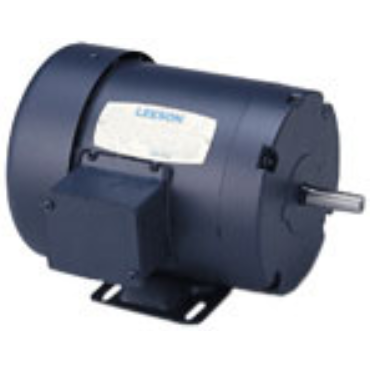

The Leeson 121940.00 is an AC three-phase totally enclosed motor designed for general-purpose applications. This motor provides reliable performance with a power rating of one and a half horsepower and runs at a speed of one thousand seven hundred fifty revolutions per minute. It features a rigid mounting style and is perfect for environments where moisture and dust protection are essential.

• One and a half horsepower with a totally enclosed fan-cooled design
• High temperature, moisture-resistant copper windings for durability
• Dynamically balanced rotor for quiet operation

Product Highlights

This motor features electric motor grade ball bearings on each end, ensuring smooth operation.

Product Information

Standard Information

• Brand: Leeson
• MPN: 121940.00

Technical Specifications

• Horsepower: 1.5 HP
• RPM: 1750
• Voltage Rating: 575 V
• Frequency: 60 Hz
• Frame Size: 140
• Service Factor: 1.15
• Enclosure Type: TEFC
• Weight: 34 lb
