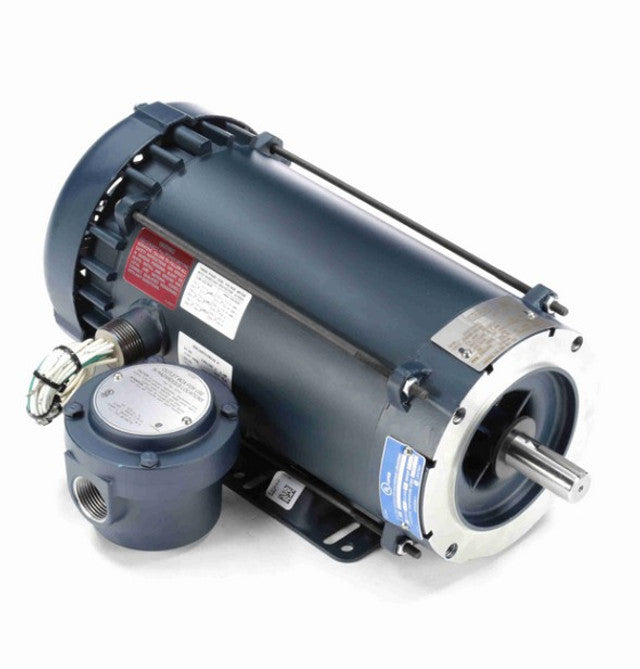

Leeson 121921.00 AC Motor 2 HP 1760 RPM Three Phase 230/460

Product Description

The Leeson 121921.00 AC Motor is designed for explosion proof applications. This two horsepower unit operates at a speed of 1760 RPM and is suitable for three phase systems with a voltage rating of 230 or 460 volts. It features a rigid base mount and is constructed with a rolled steel frame, making it durable and reliable in demanding environments.

• Explosion proof motor application
• Two horsepower capacity
• Reversible rotation

Product Highlights

This AC motor is efficient and built for a variety of industrial tasks. The EPFC enclosure enhances performance, allowing for safe operation in potentially hazardous areas.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 121921.00

Technical Specifications

• Insulation: B
• Frequency: 60 Hz
• Enclosure Designation: Explosion Proof Fan Cooled
• Rotation: Reversible
• Service Factor: 1
• Poles: 4
• Efficiency: 86.5%
• Open End Bearing: 203
• Motor Application: Explosion Proof
• Frame: 145TC
• RPM: 1760
• Phase: Three Phase
• Frame Material: Rolled Steel
• Drive End Bearing: 205
• Voltage Rating: 230/460
• Mounting: Rigid Base
• Enclosure: EPFC
• Full Load Amps: 6/3
• Weight: 62.0 LB
• EAN or UPC: 691720211878
