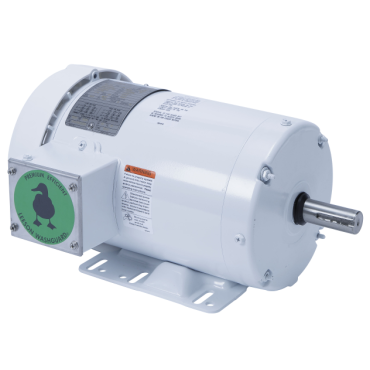

Leeson 121865.00 Washdown Duty AC Motor 1 HP 1,800 RPM 230/460

Product Description

The Leeson 121865.00 is a washdown duty AC motor designed for various applications that require resistance to moisture. This motor features a robust construction suitable for three-phase operation and provides a power rating of one horsepower while running at one thousand eight hundred revolutions per minute.

• Moisture-resistant construction
• TEFC enclosure for enhanced durability
• Suitable for variable frequency drives

Product Highlights

This motor is ideal for environments where water exposure is common. Its features include a stainless steel shaft and a durable epoxy finish, ensuring longevity and reliability.

Product Information

Standard Information

• Brand: Leeson
• Power: 1 HP

Technical Specifications

• RPM: 1,800 rpm
• Voltage Rating: 230/460
• Frame: 143T
• Phase: Three Phase
• Full Load Amps: 3.2/1.6
• Enclosure: TEFC
• Weight: 39.0 LB
• Service Factor: 1.15
• Efficiency: 85.5 %
• Rotation: Reversible
• Insulation: F
• Mounting: Rigid Base
