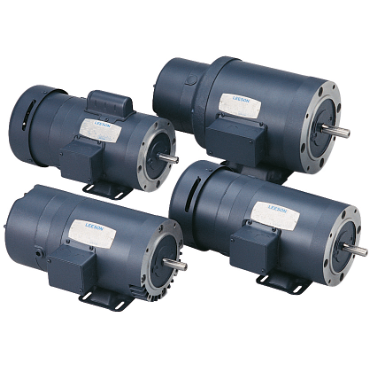

Leeson 121816.00 AC Single Phase Brakemotors 2 hp

Product Description

The Leeson 121816.00 is an AC single phase brakemotor designed for reliable performance in various applications. This motor features a robust construction and is suitable for industrial use.

• Powerful 2 hp output
• Operates at 1,740 rpm
• Totally Enclosed Fan Cooled (TEFC) design

Product Highlights

This motor provides a fail-safe positive stop. It also includes a manual brake release. Load will automatically stop when power is lost. Its dual voltage brake coils make it versatile across different setups.

Product Information

Standard Information

• Brand: Leeson
• Part #: 101484151

Technical Specifications

• HP: 2
• Hz: 60
• RPM: 1740 rpm
• Frame: 140
• Phase: Single Phase
• Poles: 4
• Weight: 26.0 LB
• Mounting: Rigid
• Rotation: Selective CCW
• Enclosure: TEFC
• Model No.: 121816
• Insulation: F4
• Voltage Rating: 115/208-230 V
• Drive End Bearing: 6205
• Open End Bearing: 6203
• Full Load Amps: 18.4/9.2
• Efficiency Group: 82
• C Dimension: 19.23 in
• Frame Material: Rolled Steel
• Enclosure Designation: Totally Enclosed Fan Cooled
