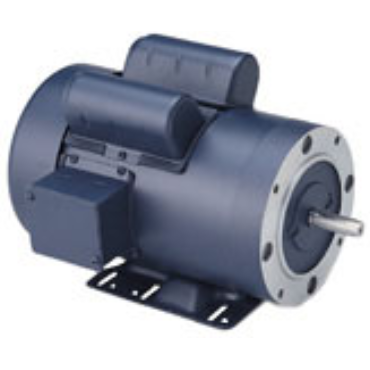

Leeson 121681.00 AC Single Phase Totally Enclosed Motors

Product Description

Leeson Electric 121681.00 is a single-phase AC motor designed for general purpose use. It features a TEFC enclosure that protects internal components from dust and moisture.

• Single-phase operation
• 1 1/2 horsepower
• 1,740 RPM for efficient performance

Product Highlights

This motor is suited for various applications where a compact, reliable motor is needed.

Product Information

Standard Information

• Brand: Leeson
• Model No.: 121681

Technical Specifications

• HP: 1 1/2
• Voltage Rating: 115/208-230 V
• RPM: 1740
• Frame Size: 140
• Phase: Single Phase
• Insulation Class: B4
• Weight: 40.0 LB
• Efficiency Group: 79
• Enclosure Type: TEFC
• Drive End Bearing: 6205
• Open End Bearing: 6203
• Mounting: Rigid
• Rotation: Selective CCW
