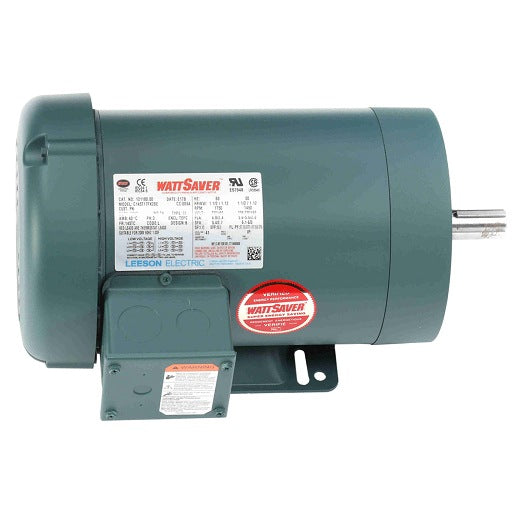

Leeson 121180.00 AC Motor 1 1/2 hp 1750 rpm Three Phase 230/460

Product Description

The Leeson 121180.00 is a versatile AC motor designed for general purpose applications. It operates at one and one-half horsepower and provides a speed of one thousand seven hundred fifty revolutions per minute. This three-phase motor is rated for both two hundred thirty and four hundred sixty volts, making it adaptable to various electrical systems.

• Rigid base mounting for stable installation.
• TEFC enclosure keeps motor protected from external elements.
• Reversible rotation for flexible applications.

Product Highlights

This motor is suitable for many industrial and commercial applications, including HVAC systems, conveyor belts, and machinery that requires dependable power.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 121180.00

Technical Specifications

• Mounting: Rigid Base
• Voltage Rating: 230/460
• RPM: 1750
• Frame: 145TC
• Rotation: Reversible
• Hz: 60
• Poles: 4
• Insulation: F
• Motor Application: General Purpose
• Enclosure: TEFC
• Drive End Bearing: 6205
• Phase: Three Phase
• Frame Material: Rolled Steel
• Service Factor: 1.15
• Open End Bearing: 6203
• Efficiency Group: 86.5%
• Full Load Amps: 4.8/2.4
• Weight: 42.0 LB
• EAN or UPC: 691720016770
