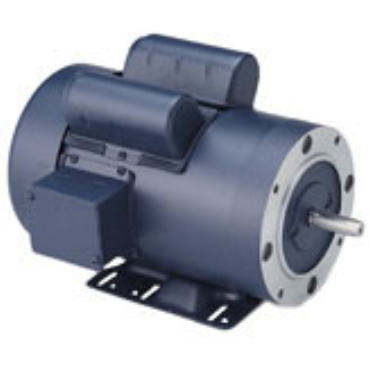

Leeson 121060.00 AC Single Phase Totally Enclosed Motors

Product Description

Leeson 121060.00 is an AC single phase totally enclosed motor designed for a variety of general purpose applications. This motor features a totally enclosed fan cooled design for reliable operation. The high quality construction offers durability and efficiency, making it suitable for heavy use. It operates at a speed of three thousand four hundred fifty RPM and provides three horsepower. The rigid mounting allows easy installation in different setups.

• TEFC enclosure for protection
• High temperature copper windings
• Dynamically balanced rotor for smooth operation

Product Highlights

This motor is ideal for HVAC systems, pumps, compressors, and other equipment needing reliable single phase power.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 121060.00

Technical Specifications

• Frame: 140
• HP: 3
• RPM: 3450
• Voltage Rating: 230 V
• Full Load Amps: 13
• Enclosure Designation: Totally Enclosed Fan Cooled
• Insulation Class: F4
• Weight: 54.0 LB
