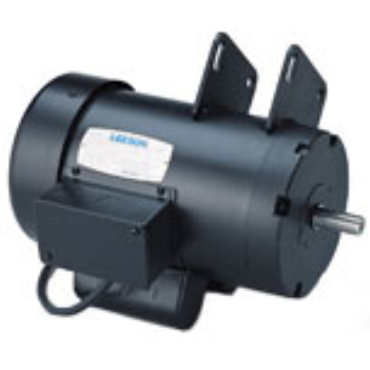

Leeson 120998.00 AC Single Phase Totally Enclosed Motors 4 hp 230 V

Product Description

Leeson Electric 120998.00 is an AC single-phase motor designed for various general-purpose applications. This motor features a totally enclosed fan cooled (TEFC) design, ensuring efficient operation in diverse environments.

• Power: 4 horsepower
• Speed: 3,450 RPM
• Frame size: 140

Product Highlights

This motor is suitable for numerous applications with a 230 V voltage rating and a high service factor of 1.

Product Information

Standard Information

• Brand: Leeson
• Model No.: 120998

Technical Specifications

• Efficiency Group: 84
• Enclosure: TEFC
• Frame Material: Rolled Steel
• Phase: Single Phase
• Full Load Amps: 17.6
• Drive End Bearing: 6205
• Mounting: Round
• RPM: 3450
• Rotation: Fixed CCW
• Hz: 60
• Service Factor: 1
• Voltage Rating: 230 V
• Poles: 2
• C Dimension: 13.68 inches
• Weight: 51.0 pounds
• Insulation: F4
• Motor Application: General Purpose
• EAN or UPC: 691720016497
